Rebec R-16F Super Farad Capacitor

Product Overview

The Rebec R-16F is a Super Farad Capacitor designed for automotive audio systems that utilize multiple amplifiers and high-current power distribution. Developed as a dedicated power management component, the R-16F combines energy storage, power distribution, voltage monitoring, and circuit protection within a single unit.

Its integrated design allows the capacitor to function as a central power hub between the vehicle battery and connected amplifiers, helping simplify wiring while supporting organized power distribution throughout the system.

Key Features

• Super Farad Capacitor design

• Integrated voltage display

• Four built-in protection fuses

• Multiple amplifier output terminals

• Dedicated battery input terminals

• ACC control terminal

• Centralized power distribution architecture

• Compact aluminum chassis

Design and Construction

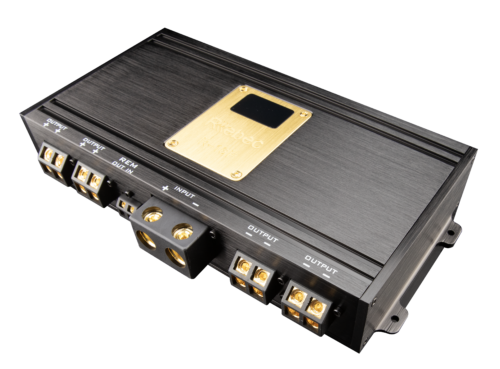

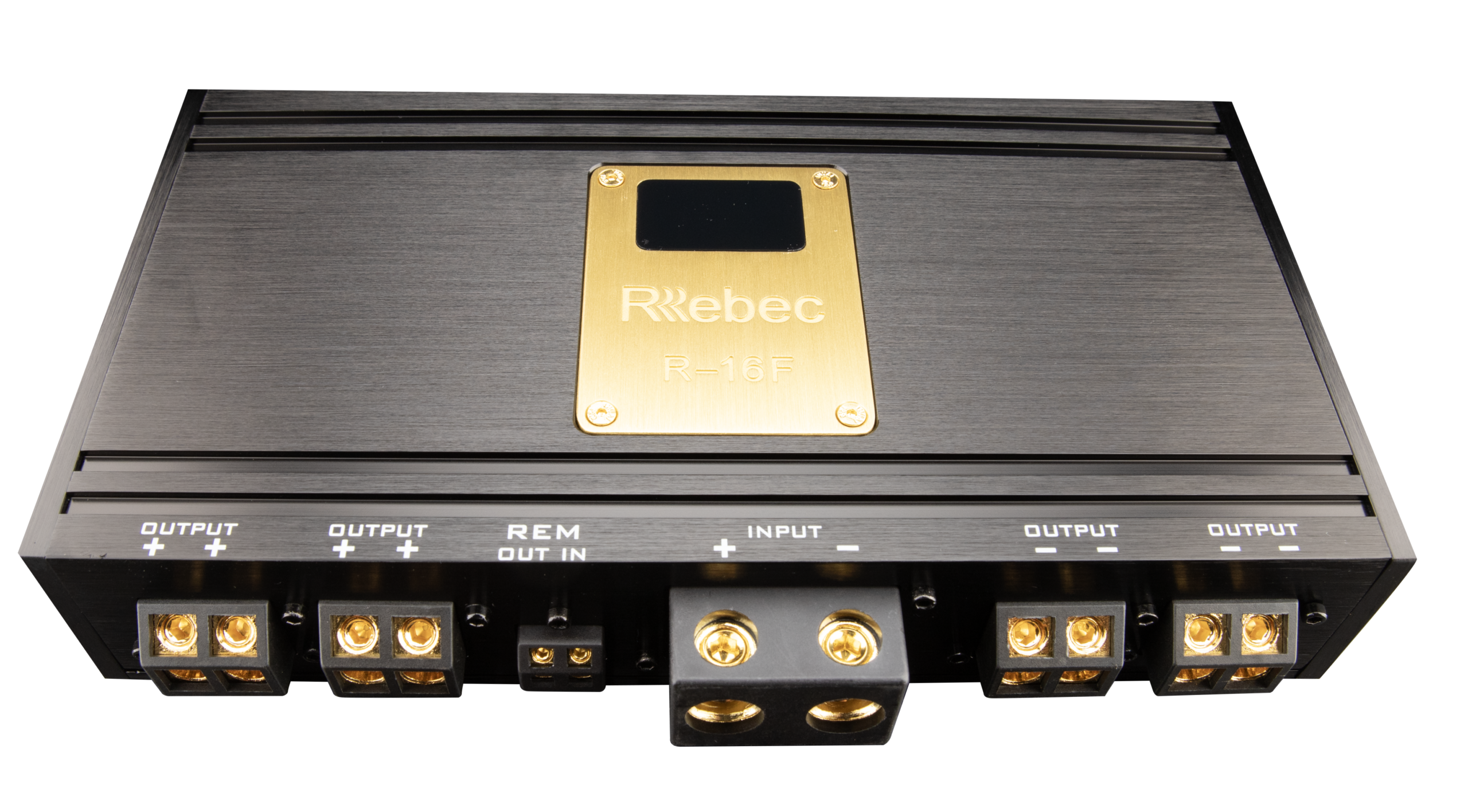

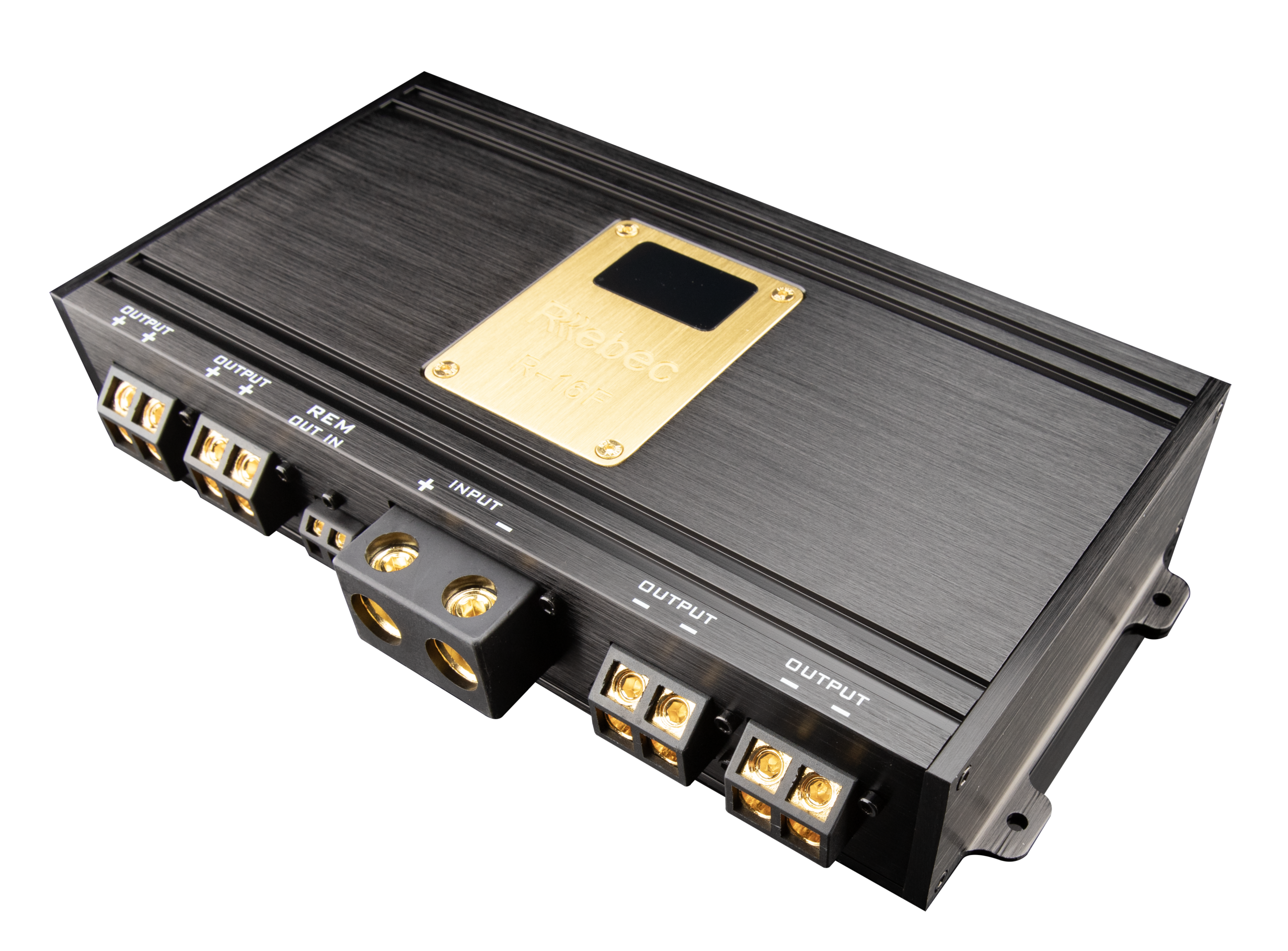

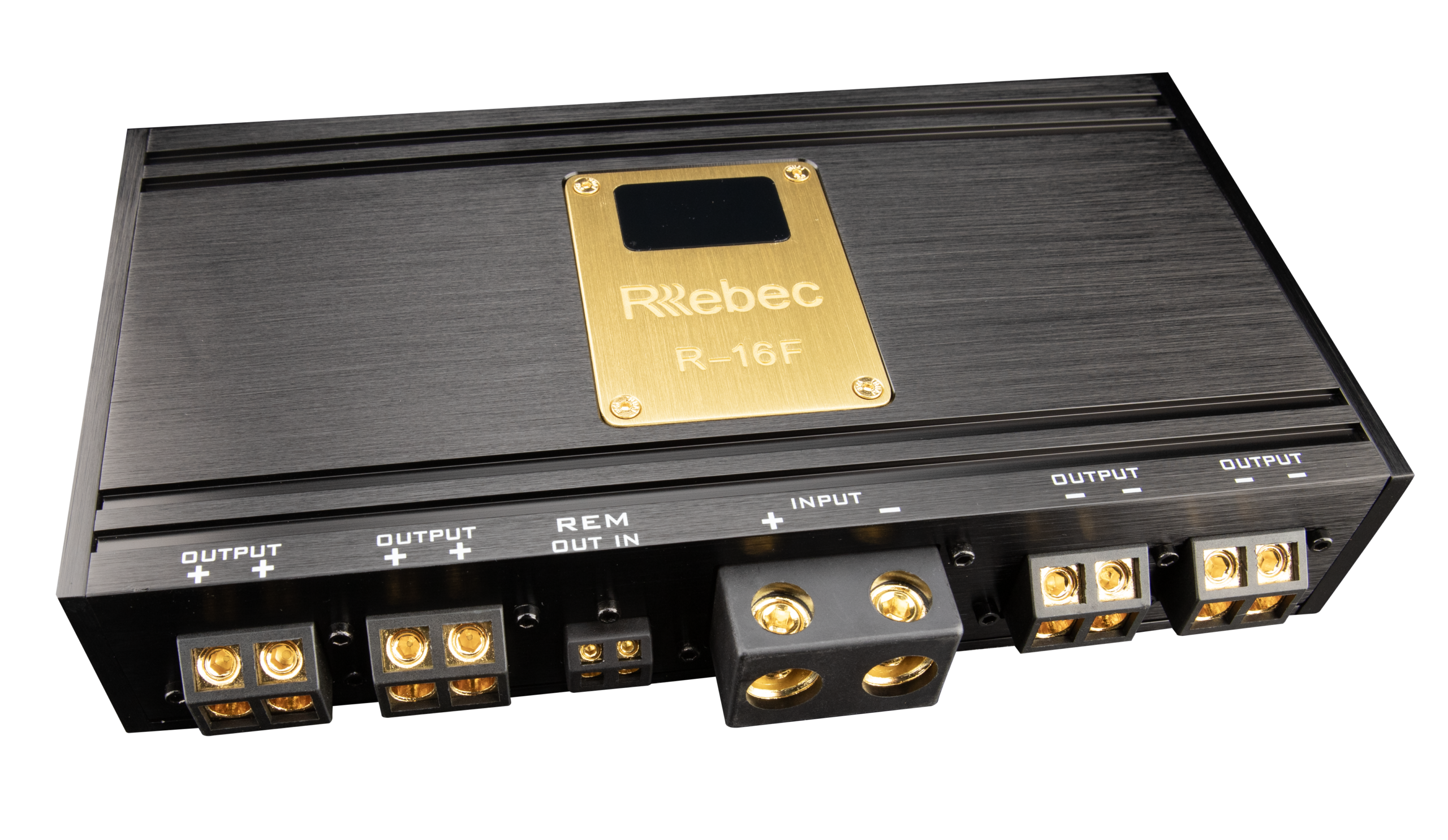

The R-16F features a compact chassis measuring 289 × 140 × 50mm, allowing it to be integrated into a wide variety of vehicle installations. The front panel incorporates a digital voltage display for system monitoring, while removable panel covers provide access to the internal fuse section.

The unit includes four integrated fuse positions that provide protection for connected circuits. Multiple output terminals allow power to be distributed from a single source to several amplifiers, reducing the need for additional power distribution blocks.

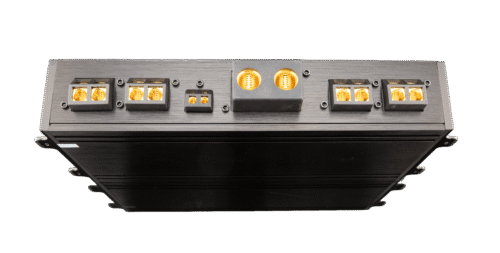

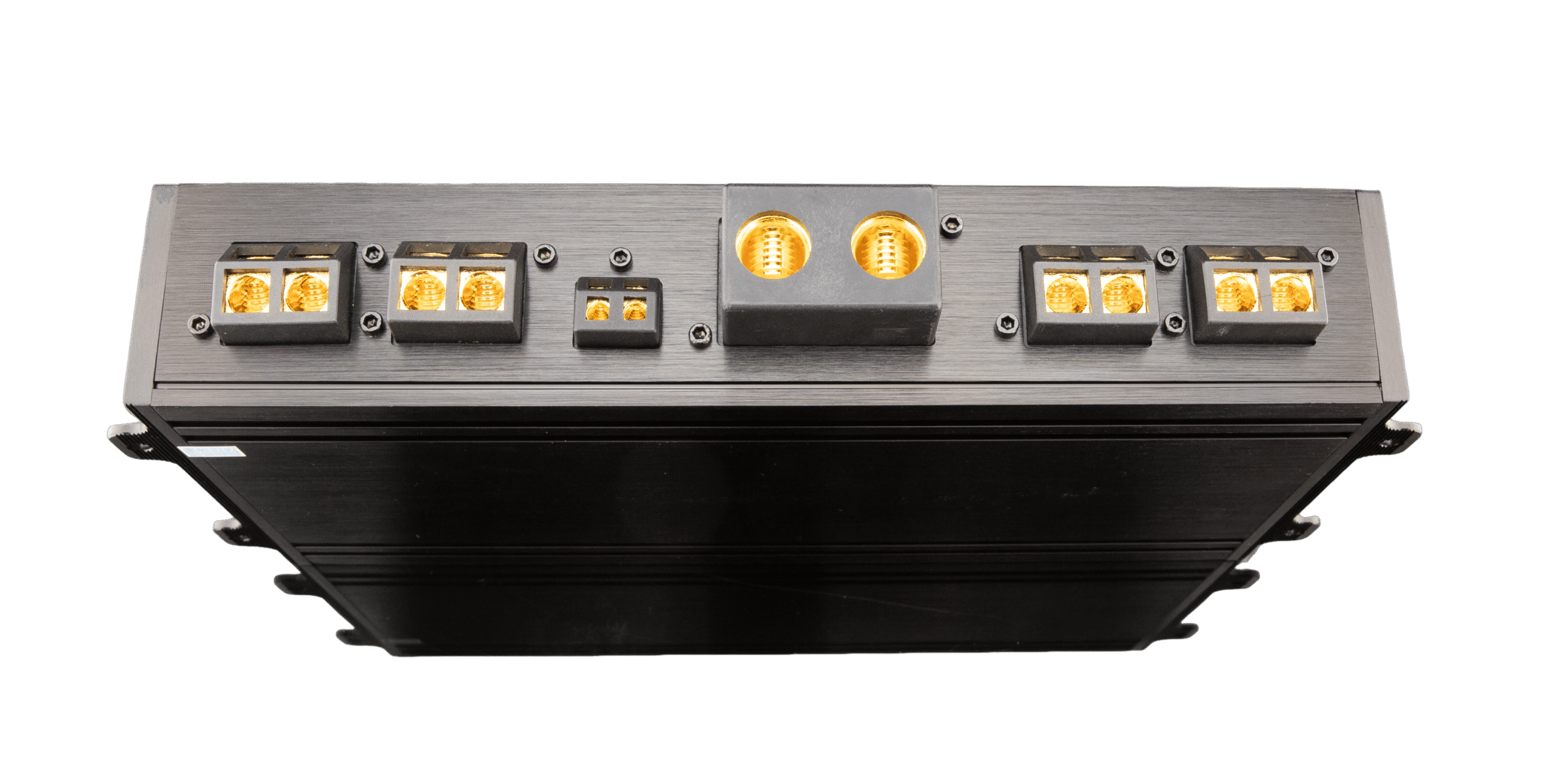

According to the product layout, the R-16F incorporates dedicated battery input terminals, multiple amplifier output terminals, and an ACC control connection for system integration.

Power Distribution Function

One of the primary functions of the R-16F is centralized power distribution.

The connection diagram shows the capacitor receiving power directly from the vehicle battery and distributing power to multiple amplifiers through independent output connections. This configuration allows several amplifiers to share a common power source through a single power management device.

By combining power distribution and energy storage in one unit, the R-16F helps organize the electrical infrastructure of complex car audio systems.

System Integration

The R-16F is designed for amplifier-based audio systems requiring multiple power connections.

The integrated ACC control terminal allows synchronization with the vehicle audio system, while the built-in voltage display provides real-time system monitoring.

The multiple output terminals make the R-16F suitable for installations utilizing several amplifiers, including systems with separate amplifiers for front speakers, rear speakers, and subwoofers. The centralized connection structure helps simplify installation and power routing.

Charging and Installation

The product documentation includes a dedicated charging procedure before first use.

The capacitor should be connected according to the supplied charging method, utilizing a charging bulb or resistor before direct connection to the battery. This process is designed to allow controlled charging of the capacitor prior to operation. The documentation also emphasizes correct polarity during installation and proper fuse protection throughout the system.

Product Positioning

Within the Rebec accessory lineup, the R-16F serves as a combined power storage and distribution solution for advanced amplifier systems.

Rather than acting as an amplifier or signal processor, the R-16F focuses on organizing power delivery, integrating multiple amplifier connections, and providing centralized electrical management within the audio system.

Its combination of voltage monitoring, fuse protection, and multiple amplifier outputs makes it a practical component for larger car audio installations.

Rebec R-16F

Super Farad Energy Storage. Centralized Power Distribution. Built for Multi-Amplifier Systems.
