Rebec RS8.3
3-Way Component System
Rebec RS8.3
3-Way Component System

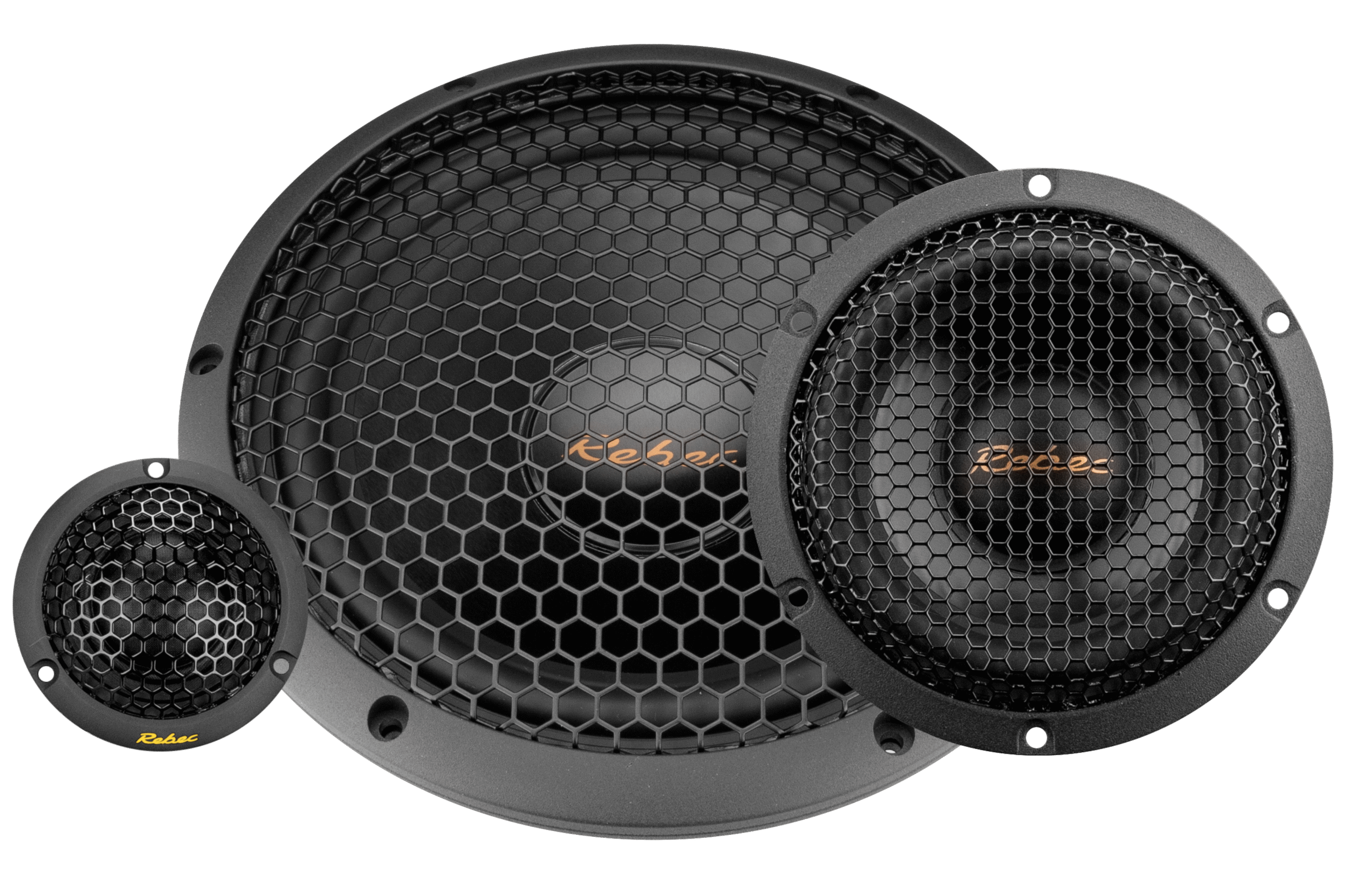

Rebec RS8.3 3-Way Component Speaker
Powerful Dynamics with Exceptional Detail and Soundstage
The Rebec RS8.3 is a premium 3-way component speaker system featuring the RS200 8-inch mid-woofer, RS90 midrange, and RS28 tweeter. Designed for listeners who demand strong midbass authority, outstanding detail retrieval, and expansive soundstage performance, the RS8.3 delivers a highly dynamic and immersive listening experience.
Combining the scale and impact of an 8-inch mid-woofer with the clarity and precision of dedicated midrange and tweeter drivers, the RS8.3 is engineered to reproduce music with remarkable realism and energy.
Sound Characteristics
- Excellent vocal imaging and focus
- Powerful and impactful midbass performance
- Fast and controlled transient response
- Highly detailed musical reproduction
- Spacious and immersive soundstage
The RS8.3 is tuned to reveal more information from recordings while maintaining strong musical engagement and impressive dynamic capability.
Key Features
RS200 8-Inch Mid-Woofer
At the foundation of the system is the RS200, an advanced 8-inch mid-woofer developed to deliver exceptional midbass authority and low-frequency impact. Compared with the RC200, the RS200 provides greater speed, improved clarity, and stronger overall control, allowing bass notes to sound more precise and dynamic.
RS90 High-Resolution Midrange
The RS90 is engineered for detailed and articulate vocal reproduction. Its aluminum-magnesium alloy cone structure allows it to reproduce vocals and instruments with greater clarity, enhanced detail retrieval, and improved definition throughout the critical midrange frequencies.
RS28 Premium Tweeter
Featuring a high-density silk diaphragm and neodymium motor structure, the RS28 delivers outstanding high-frequency detail, spaciousness, and refinement. Its open and airy presentation contributes significantly to the expansive soundstage of the system.
Advanced 3-Way Architecture
The dedicated woofer, midrange, and tweeter configuration allows each driver to operate within its optimal frequency range, improving frequency distribution, imaging accuracy, and overall tonal coherence.
Performance Highlights
The RS8.3 combines the authority of an 8-inch mid-woofer with the speed and precision expected from a modern sound quality-oriented speaker system. Powerful midbass impact, highly detailed vocals, and a spacious treble presentation work together to create a listening experience that feels both energetic and highly refined.
Application
The Rebec RS8.3 is ideal for advanced DSP-based systems, high-performance three-way front-stage installations, and enthusiasts seeking greater dynamic capability, stronger midbass authority, and enhanced soundstage performance.
Summary
Combining the powerful RS200 mid-woofer, detailed RS90 midrange, and spacious-sounding RS28 tweeter, the Rebec RS8.3 delivers exceptional vocal imaging, impressive low-frequency impact, and remarkable musical detail. Designed for listeners who demand both scale and precision, it represents one of the most capable three-way speaker systems within the Rebec RS Series.
Specification
| Speaker Model | RS200 | RS90 | RS28 |
| Type of Speaker | Mid-Woofer | Mid-range | Tweeter |
| Speaker Size | 209mm/8" | 92mm/3.62" | 62mm/2.4" |
| Nominal power (RMS) | 80W | 35W | 25W |
| Maximum power (PEAK) | 160W | 70W | 50W |
| Sensitivity (2.83V/1m) | 90dB | 88dB | 90dB |
| Frequency response | 40Hz-6KHz | 80Hz-10KHz | 1.3KHz-27KHz |
| Impedance | 3ohm | 4ohm | 4ohm |
| DRC | 2.7ohm | 3.6ohm | 3.6ohm |
| Voice coil diameter | 30mm/1.18in | 25mm/0.98in | 28mm/1.10in |
| Cone (materier) | Aluminum-Magnesium Alloy Cone | Aluminum-Magnesium Alloy Cone+Polypropylene dust cap | High-Density Silk Diaphragm |
| Surround | Isobutylene Isoprene Rubber | Isobutylene Isoprene Rubber | |
| Magnet (materier) | Ferrite Magnet | Neodymium Iron Boron | Neodymium Iron Boron |
| Magnet (diameter) | 100mm | 55mm | 27mm |
| PARAMETERS | |||
| F0 | 41Hz | 78Hz | 1.6KHz |
| Sd | 161cm² | 26cm² | 10cm² |
| Vas | 31L | 0.9L | |
| Cms | 586μM/N | 927μM/N | |
| Mms | 24.8g | 4.4g | |
| BL | 7.142N/A | 4.6N/A | |
| Qms | 4,97 | 1,681 | |
| Qes | 0,46 | 0,37 | |
| Qts | 0,42 | 0,304 | |
| SPLo | 90dB | 88dB | |
| Xmax | 10mm | 6mm | |
| Xmech | 11mm | 6.5mm |
