Rebec RT6
2Way Component System
Rebec RT6
2Way Component System

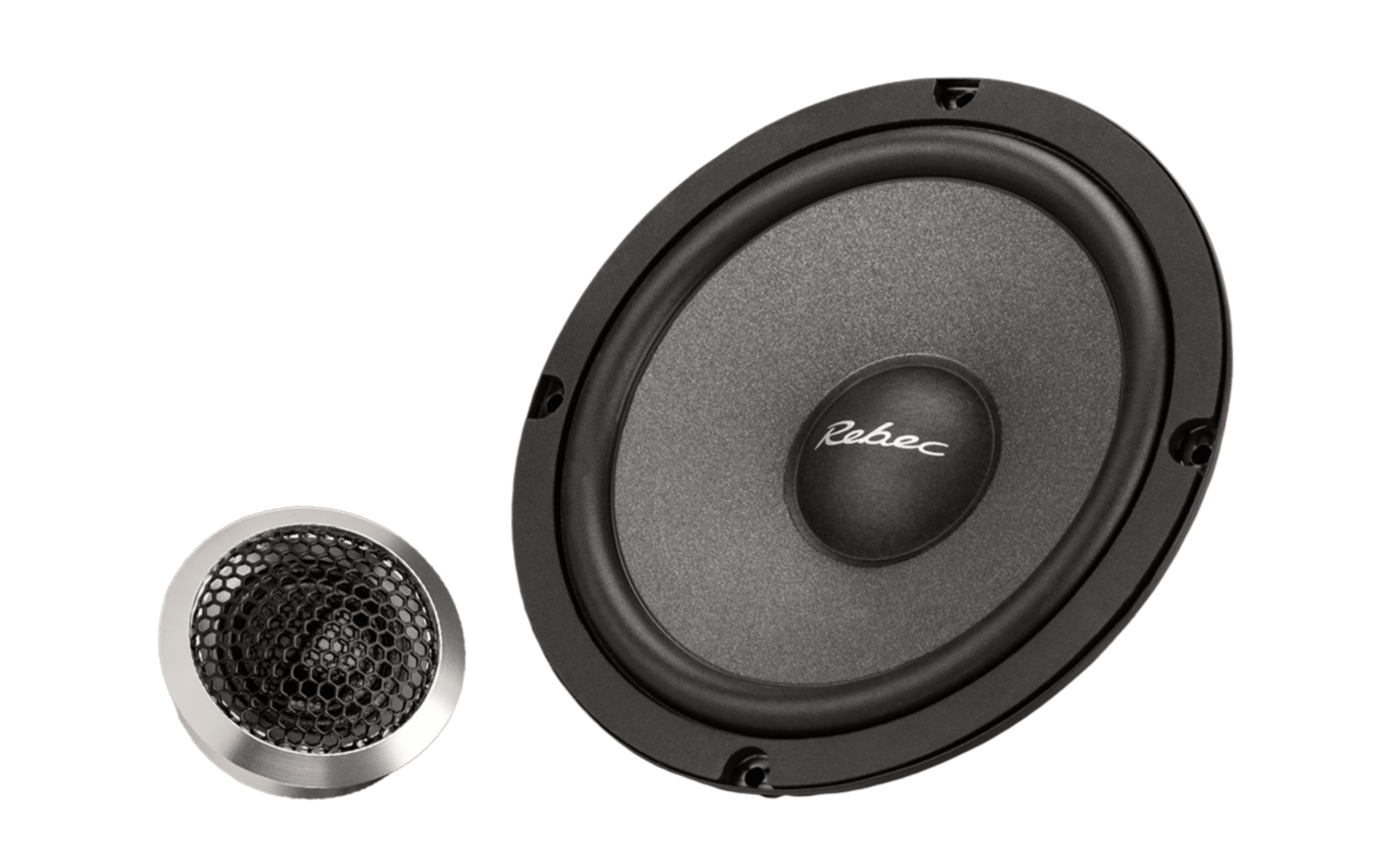

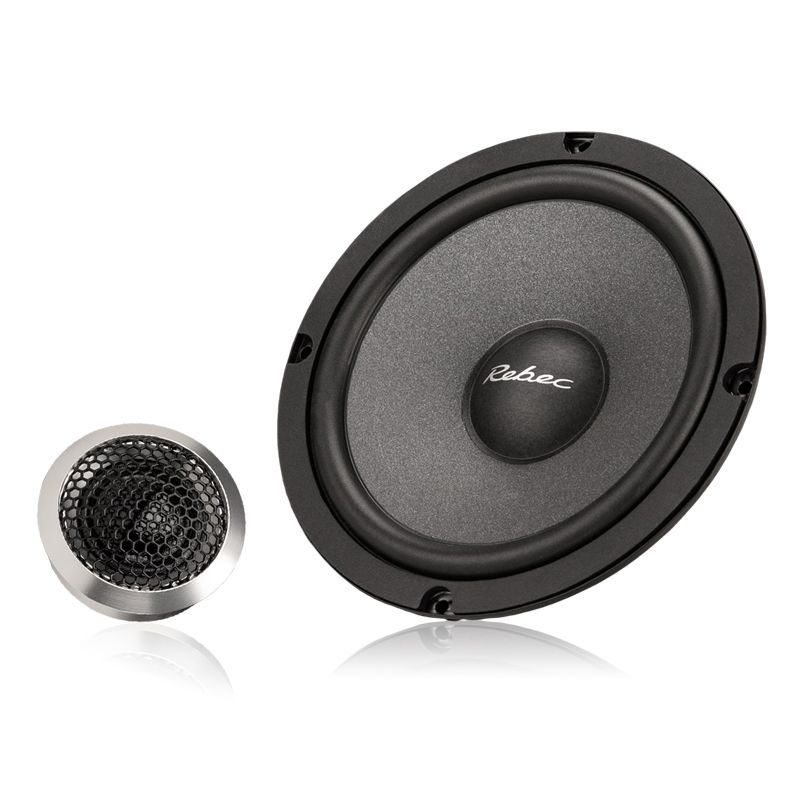

Rebec RT6 Component Speaker
Balanced entry performance with open sound character
Overview
The Rebec RT6 is a 2-way component speaker designed as a cost-effective upgrade solution, delivering a noticeable improvement over factory systems with a natural and balanced sound signature.
Sound Performance
Full timbre, open soundfield, cost-effective entry-level first choice
- Natural vocal presentation with improved clarity
- Open and wider soundstage compared to OEM speakers
- Smooth high frequencies for comfortable long-term listening
Feature Highlights
- 2-Way Component Structure
Separate woofer and tweeter for better frequency distribution and improved staging - Lightweight Composite Cone
Enhances midbass accuracy and overall tonal balance - Silk Dome Tweeter Design
Provides smooth, detailed high-frequency reproduction without harshness - Optimized Crossover Network
Ensures seamless transition between drivers for a coherent listening experience
Easy Integration
- Standard fit for most vehicle door installations
- Compatible with factory head units and basic amplifier setups
- Flexible tweeter positioning for improved imaging
Application
Ideal for entry-level upgrades, replacing factory speakers with a more refined and open sound character while maintaining installation simplicity.
Summary
The Rebec RT6 delivers a well-balanced and natural sound performance, making it a strong entry-level choice for users seeking an easy yet effective upgrade in car audio quality.
Specification
| Speaker Model | RT165 - WF | RT20 - TW |
| Nominal power (RMS) | 55W | 10W |
| Maximum power (PEAK) | 110W | 20W |
| Sensitivity (2.83V/1m) | 91dB | 85dB |
| Frequency response | 65Hz-10KHz | 1.5KHz-20KHz |
| Impedance | 3ohm | 4ohm |
| DRC | 2.7ohm | 3.6ohm |
| Voice coil diameter | 25mm/0.98in | 20mm/0.79in |
| Cone (materier) | Composite pulp |
High-Quality Silk Diaphragm
|
| Surround |
Modified Butyl Rubber
|
|
| Magnet (materier) | Ferrite Magnet |
Neodymium Iron Boron
|
| Magnet (diameter) | 80mm | 19.5mm |
| PARAMETERS | ||
| F0 | 71Hz | 1.7KHz |
| Sd | 109cm² | 5.2cm² |
| Vas | 11.6L | |
| Cms | 490μM/N | |
| Mms | 10g | |
| BL | 3.529N/A | |
| Qms | 8,41 | |
| Qes | 1,284 | |
| Qts | 1,114 | |
| SPLo | 91dB | |
| Xmax | 7mm | |
| Xmech | 13mm |
