Rebec RV6.3 3-Way Component Speaker
Excellent Balance, Sweet Vocals and Clear Musical Detail

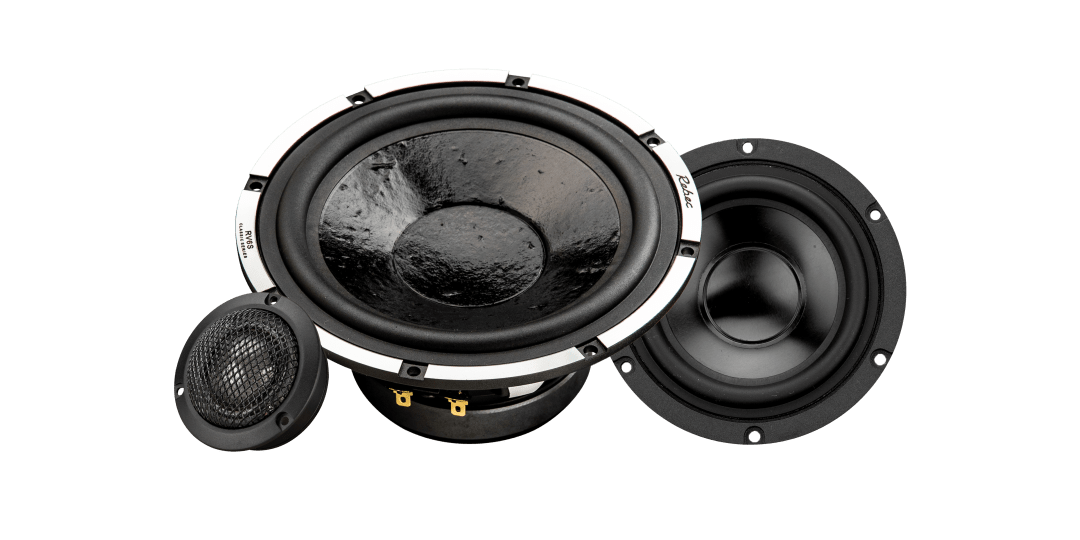

The Rebec RV6.3 is a 3-way component speaker system combining the RV165 mid-woofer, RV92 midrange, and RV28 tweeter. Developed for listeners seeking greater balance, clarity, and musical refinement, the RV6.3 is engineered to reproduce music with excellent tonal integration and a naturally engaging sound character.
Designed around the philosophy of balanced sound reproduction, the RV6.3 delivers a quiet musical background, sweet vocal presentation, and clear detail across the entire frequency range.
Sound Characteristics
- Excellent balance throughout the frequency spectrum
- Quiet and clean musical background
- Sweet and natural vocal reproduction
- Clear detail and instrument separation
- Open and well-organized soundstage
The three-way architecture allows each driver to focus on its dedicated frequency range, resulting in improved coherence and greater overall realism.
Key Features
RV165 Mid-Woofer
The RV165 delivers deep and powerful midbass performance while maintaining good tonal control and musical balance. Its semi-relaxed compressed paper cone construction contributes to a natural and rich low-frequency foundation.
RV92 Midrange
Built with an aluminum-magnesium alloy cone and neodymium motor structure, the RV92 is designed to reproduce vocals and instruments with impressive clarity and detail. Compared with the RC90, it offers greater detail retrieval and a brighter, more articulate presentation.
RV28 Tweeter
The RV28 utilizes a high-rigidity silk diaphragm and neodymium motor structure to reproduce high frequencies with excellent detail and refinement. Compared with the RX25, the RV28 reveals more subtle musical information while maintaining smooth listening characteristics.
True 3-Way System Design
The dedicated mid-woofer, midrange, and tweeter configuration allows the RV6.3 to achieve superior frequency distribution, helping create a more natural soundstage and improved instrument separation.
Performance Highlights
The RV6.3 is tuned for listeners who appreciate balance and musical accuracy. Its combination of a quiet background, sweet vocal presentation, and enhanced detail retrieval allows music to be reproduced with clarity and emotional engagement without sounding aggressive or overly analytical.
Application
The Rebec RV6.3 is ideal for sound quality-focused systems, active DSP installations, and enthusiasts seeking a refined 3-way component speaker capable of delivering balanced and natural musical reproduction.
Summary
Combining the RV165 mid-woofer, RV92 midrange, and RV28 tweeter, the Rebec RV6.3 delivers excellent balance, clear detail, and sweet vocal performance. With its quiet musical background and refined three-way architecture, it offers a highly engaging listening experience for drivers who value both musicality and accuracy.
Specification
| Speaker Model | RV165 | RV92 | RV28 |
| Type of Speaker | Mid-Woofer | Mid-range | Tweeter |
| Speaker Size | 165mm/6.5" | 25mm/0.98" | 60mm/2.36" |
| Nominal power (RMS) | 65W | 35W | 20W |
| Maximum power (PEAK) | 130W | 70W | 40W |
| Sensitivity (2.83V/1m) | 86dB | 86dB | 89dB |
| Frequency response | 42Hz-7KHz | 80Hz-6KHz | 1KHz-25KHz |
| Impedance | 4ohm | 4ohm | 4ohm |
| DRC | 3.6ohm | 3.6ohm | 3.6ohm |
| Voice coil diameter | 25mm/0.98in | 25mm/0.98in | 28mm/1.10in |
| Cone (materier) | Semi-relaxed Compressed Paper Cone Material | Aluminum-Magnesium Alloy Cone | High-Rigidity Silk Diaphragm |
| Surround | Isobutylene Isoprene Rubber | Isobutylene Isoprene Rubber | |
| Magnet (materier) | Ferrite Magnet | Neodymium Iron Boron | Neodymium Iron Boron |
| Magnet (diameter) | 90mm | 55mm | 27mm |
| PARAMETERS | |||
| F0 | 48Hz | 77Hz | 1.2KHz |
| Sd | 109cm² | 26cm² | 10cm² |
| Vas | 8.5L | 0.9L | |
| Cms | 502μM/N | 965μM/N | |
| Mms | 21.7g | 4.4g | |
| BL | 6.443N/A | 4.6N/A | |
| Qms | 5,729 | 1,804 | |
| Qes | 0,571 | 0,362 | |
| Qts | 0,519 | 0,302 | |
| SPLo | 86dB | 86dB | |
| Xmax | 9mm | 6mm | |
| Xmech | 11mm | 6.5mm |
