Rebec RX25 Tweeter
Detailed and Natural High-Frequency Reproduction

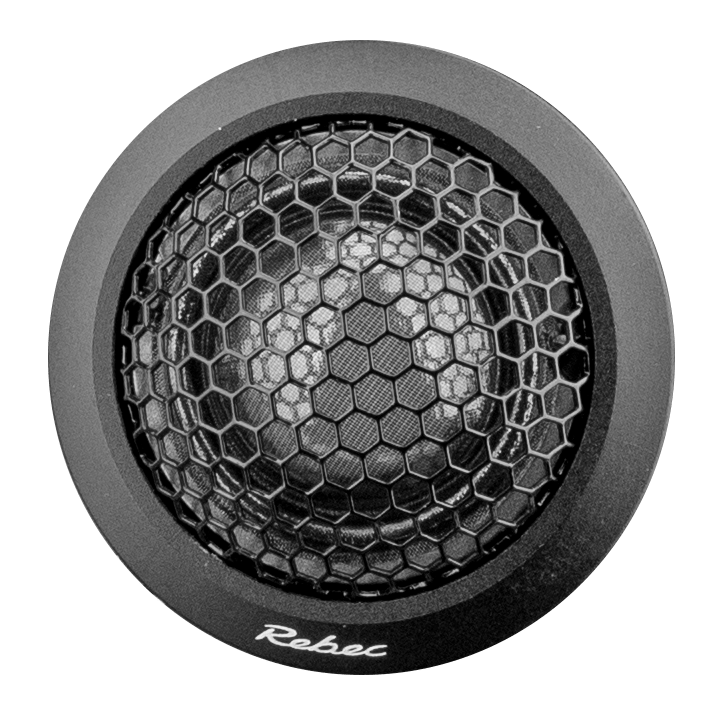

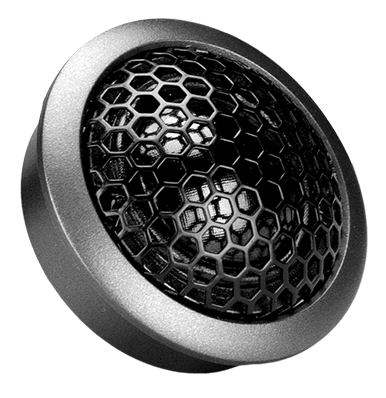

The Rebec RX25 is a silk dome tweeter developed for the Rebec RX Series component speaker systems. Designed around the concept of appreciating the original sound quality, the RX25 focuses on delivering clear, natural, and detailed high-frequency reproduction while maintaining excellent listening comfort.
Featuring a high-quality silk diaphragm and neodymium motor structure, the RX25 is engineered to reproduce subtle musical details with accuracy and balance, helping create a more open and realistic listening experience.
Sound Characteristics
- Appreciating the original sound quality
- Clear and detailed high-frequency reproduction
- Natural tonal balance
- Smooth and refined treble response
- Improved sense of space and openness
Key Features
High-Quality Silk Dome Diaphragm
The silk dome construction provides smooth and natural treble performance while maintaining excellent listening comfort during extended listening sessions.
Enhanced Detail Retrieval
Designed to reveal more subtle information within recordings, allowing vocals, instruments, and ambient details to be reproduced with greater clarity.
Neodymium Magnet Structure
The compact neodymium motor system offers efficient performance and installation flexibility across a wide range of vehicle applications.
Balanced Frequency Integration
Developed to work seamlessly with the RX165 mid-woofer, creating a coherent and natural overall sound signature.
Performance Highlights
According to Rebec’s product evaluation, the RX25 delivers a higher level of detail and resolution compared with the RT20 tweeter used in the RT Series. This results in a more refined high-frequency presentation while preserving the natural character of the music.
Application
The Rebec RX25 is suitable for OEM audio upgrades, custom component speaker systems, active DSP installations, and aftermarket projects where improved treble detail and natural sound reproduction are priorities.
Summary
The Rebec RX25 is designed for listeners who value musical accuracy and detail. Combining a silk dome diaphragm, neodymium motor structure, and refined acoustic tuning, it delivers clear, natural, and detailed high-frequency performance while staying true to the original recording.
Specification
| Speaker Model | RX25 |
| Type of Speaker | Tweeter |
| Speaker Size | 53mm/2.08" |
| Nominal power (RMS) | 15W |
| Maximum power (PEAK) | 30W |
| Sensitivity (2.83V/1m) | 86dB |
| Frequency response | 1.4KHz-20KHz |
| Impedance | 4ohm |
| DRC | 3.6ohm |
| Voice coil diameter | 25mm/0.98in |
| Cone (materier) | High-Quality Silk Diaphragm |
| Surround | |
| Magnet (materier) | Neodymium Iron Boron |
| Magnet (diameter) | 24.5mm |
| PARAMETERS | |
| F0 | 1.4KHz |
| Sd | 8.6cm² |
