Rebec RCX6A
Coaxial Speaker
Rebec RCX6A
Coaxial Speaker

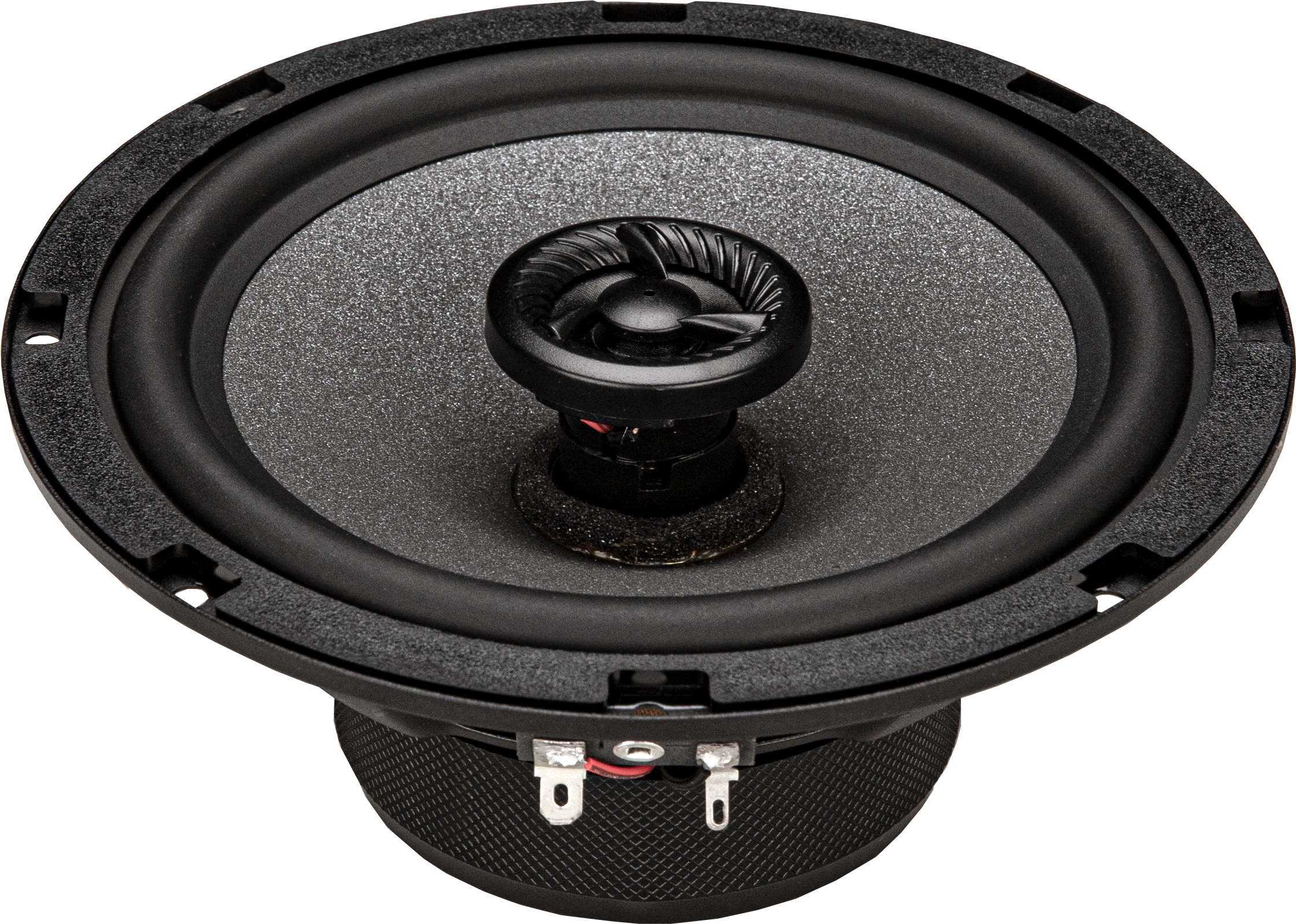

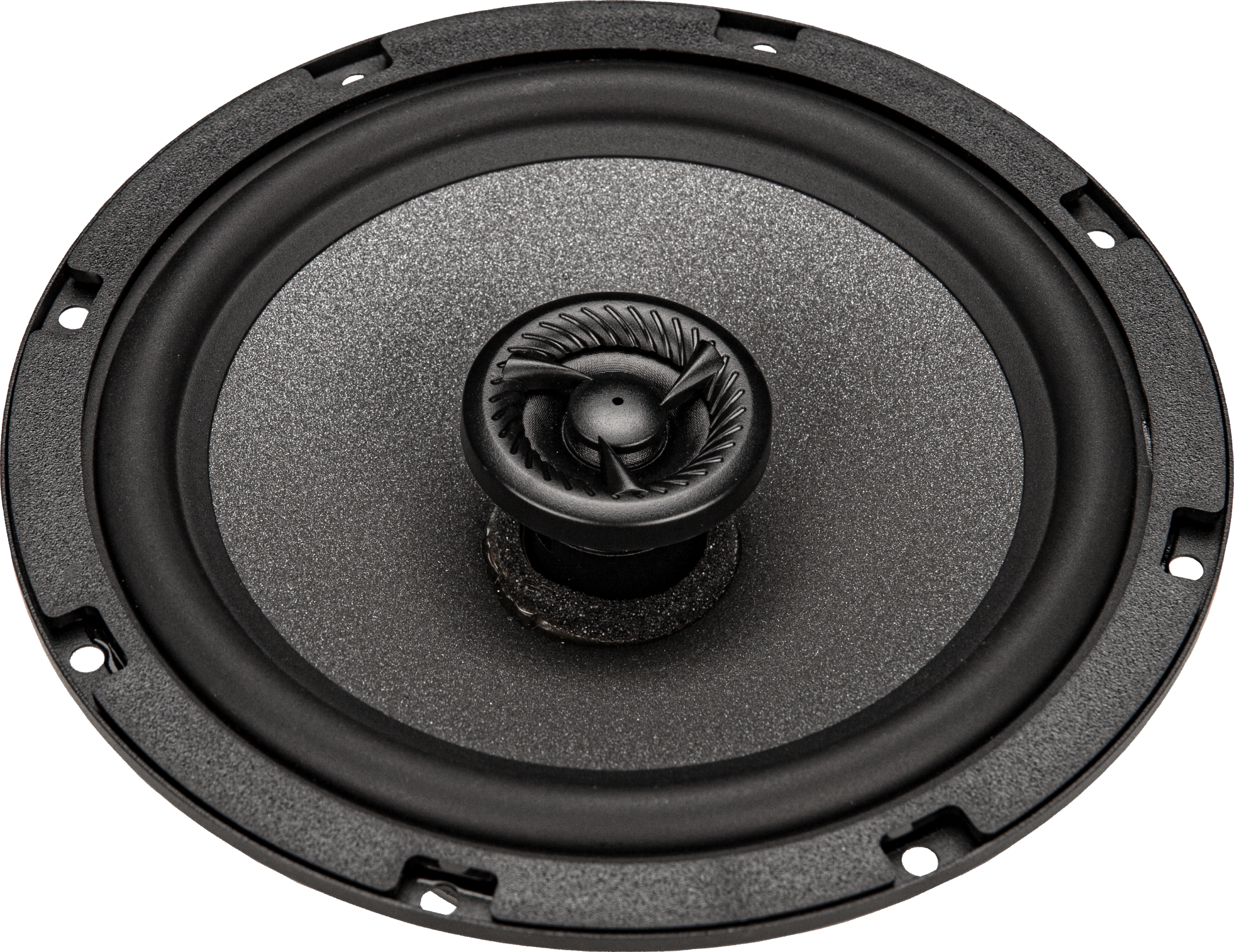

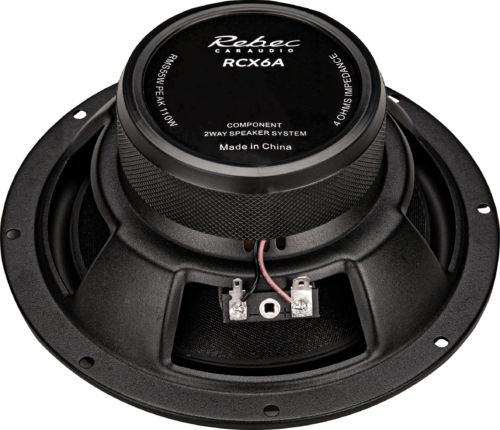

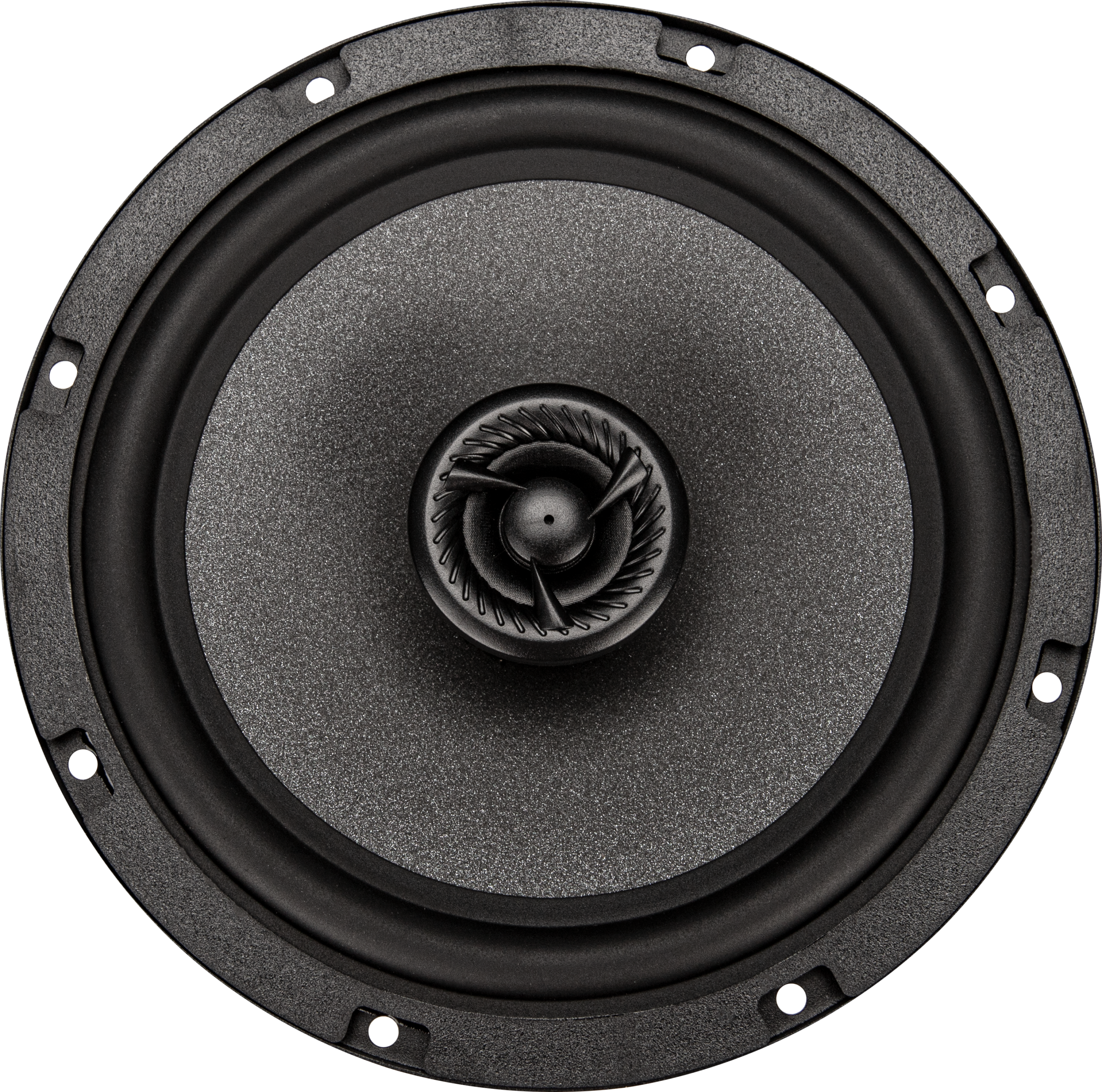

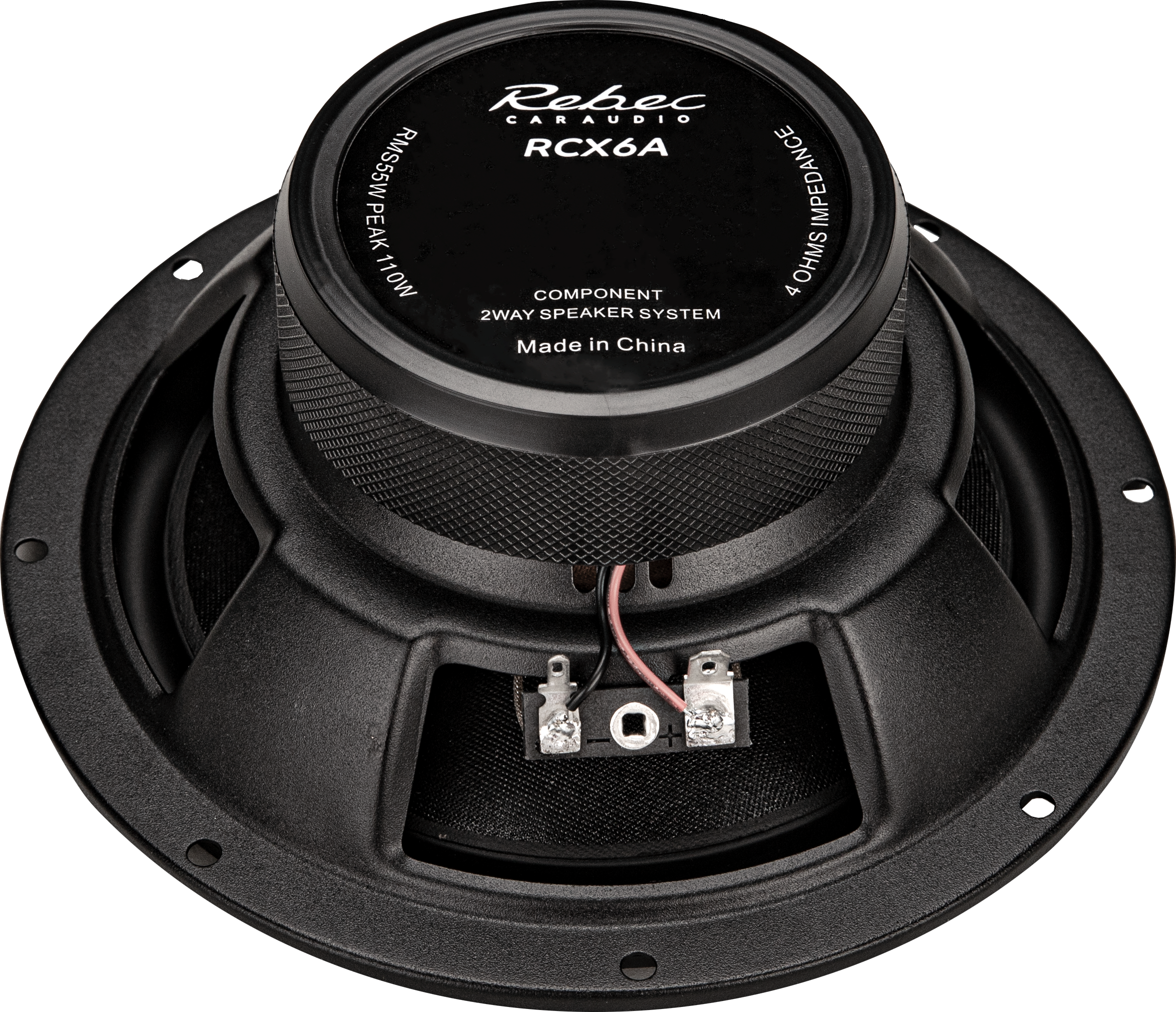

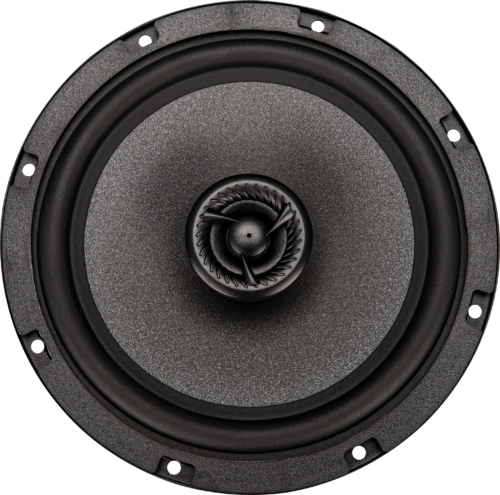

Rebec RCX6A Coaxial Speaker
Sound performance: Clear and delicate tone, smooth transition, perfect complement to the back sound field. Simple upgrade. Clear improvement.
Overview
The RCX6A is a 2-way coaxial speaker designed as a direct replacement for factory-installed car speakers. It delivers a clear improvement in sound quality with a simple, efficient installation.
Sound Performance
- Natural and clear midrange for vocals
- Smooth, well-controlled high frequencies
- Improved bass definition compared to OEM speakers
Balanced tuning makes it suitable for everyday listening across multiple music genres.
Feature Highlite
- Integrated Coaxial Design
Combines woofer and tweeter in a single unit for consistent and coherent sound reproduction - Cone material: Composite pulp, lightweight and rigid
Ensures accurate midbass response with good control and reduced distortion - High-Efficiency Motor Structure
Optimized magnetic system improves sensitivity and overall output performance - Durable Surround Construction
Designed for long-term stability and reliable operation in automotive environments
Easy Installation
- Direct fit for most standard vehicle door locations
- Compatible with factory head units
- No additional DSP or amplifier required
Key Specifications
- Power Handling: 55W RMS
- Sensitivity: 93 dB
- Frequency Response: 66Hz – 20kHz
- Impedance: 4 Ohm
Application
Ideal for users looking to upgrade factory audio systems with minimal modification while achieving clearer and more balanced sound.
Summary
The RCX6A provides a straightforward upgrade path from factory speakers, combining reliable build quality with improved clarity and listening comfort for everyday use.
Specification
| Speaker Model | RCX6A |
| Type of Speaker | Coaxial |
| Speaker Size | 165mm/6.5" |
| Nominal power (RMS) | 55W |
| Maximum power (PEAK) | 110W |
| Sensitivity (2.83V/1m) | 93dB |
| Frequency response | 66Hz-20KHz |
| Impedance | 4ohm |
| DRC | 3.6ohm |
| Voice coil diameter | 13mm/0.51in (Tweeter) 25mm/0.98in (Mid) |
| Cone (materier) | Composite pulp |
| Surround | Modified Butyl Rubber |
| Magnet (materier) | Ferrite Magnet |
| Magnet (diameter) | 80mm |
| PARAMETERS | |
| F0 | 66Hz |
| Sd | 109cm² |
| Vas | |
| Cms | |
| Mms | |
| BL | |
| Qms | |
| Qes | |
| Qts | |
| SPLo | 93dB |
| Xmax | 7mm |
| Xmech | 13mm |
