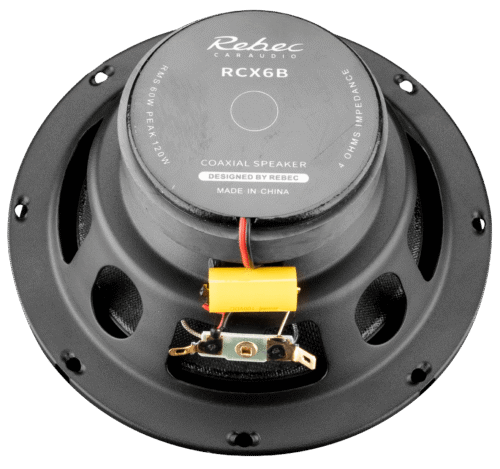

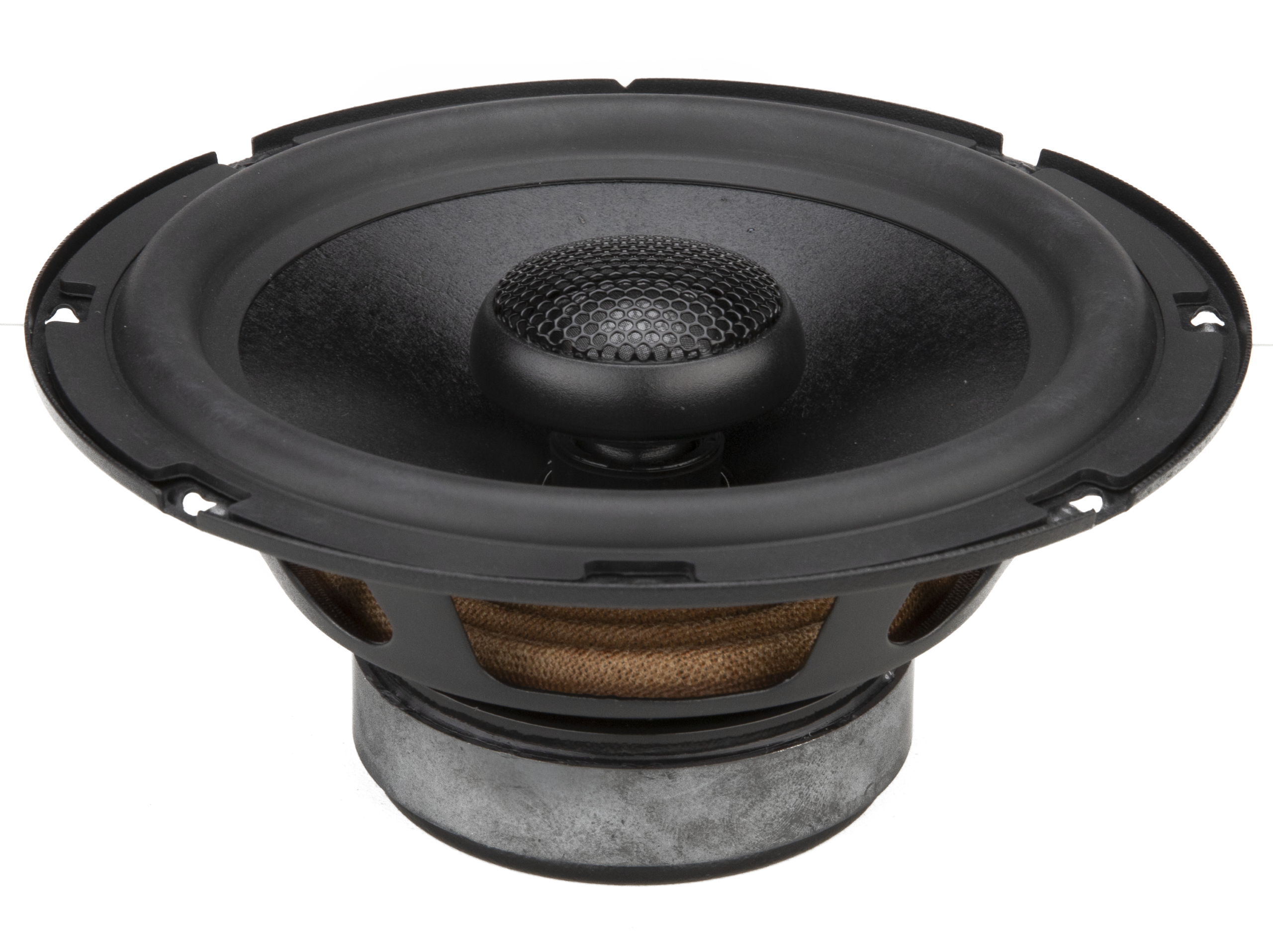

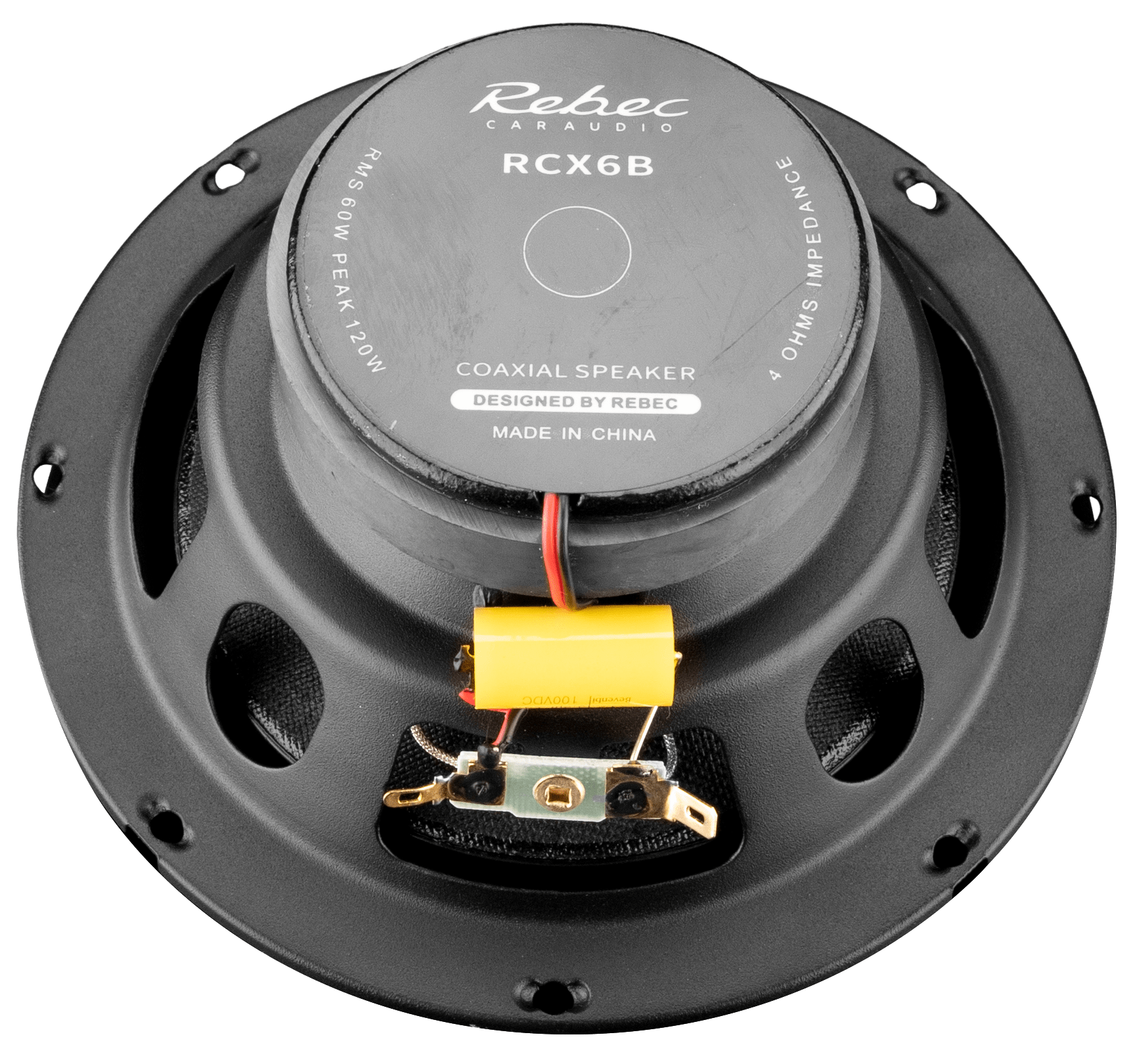

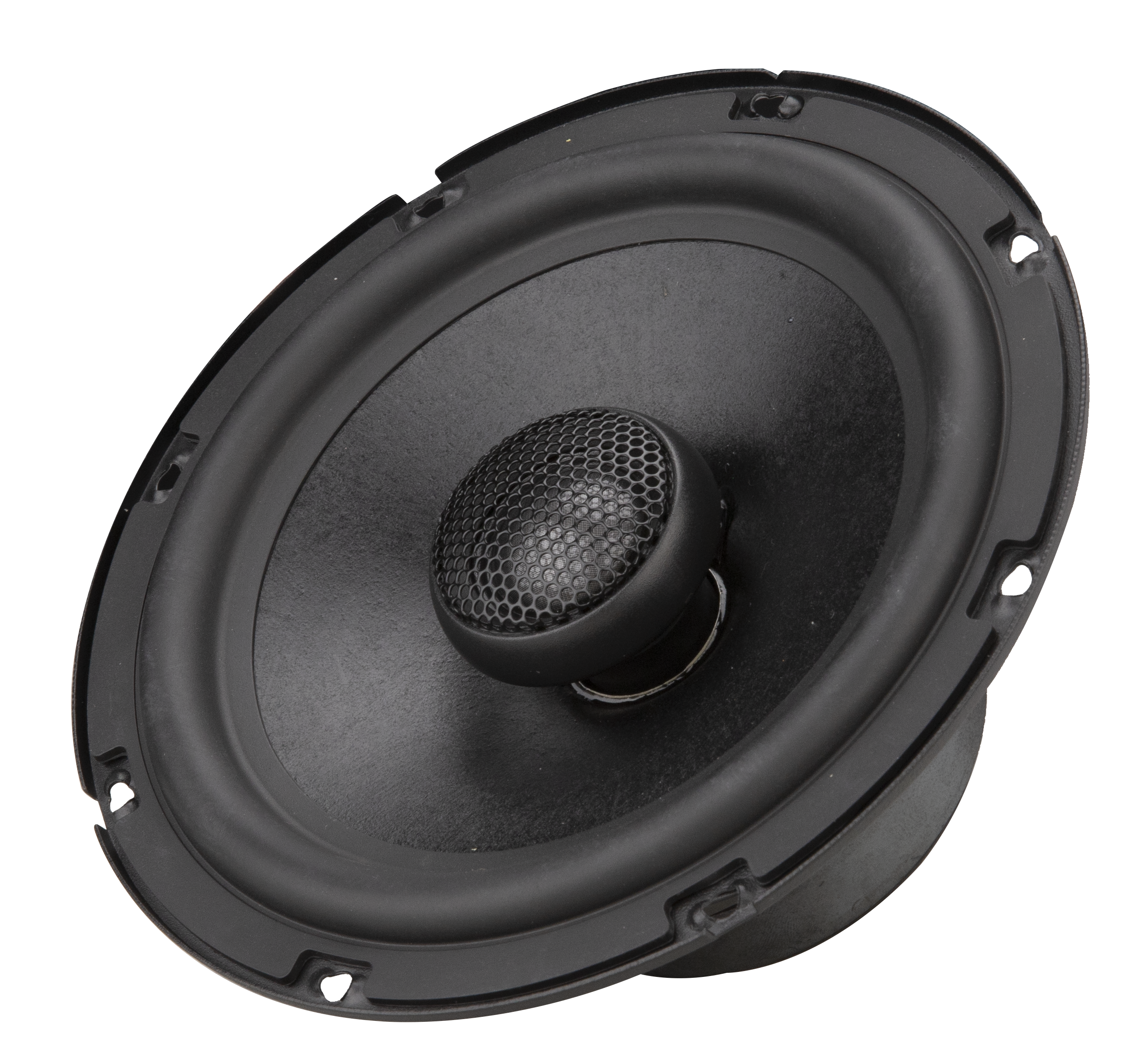

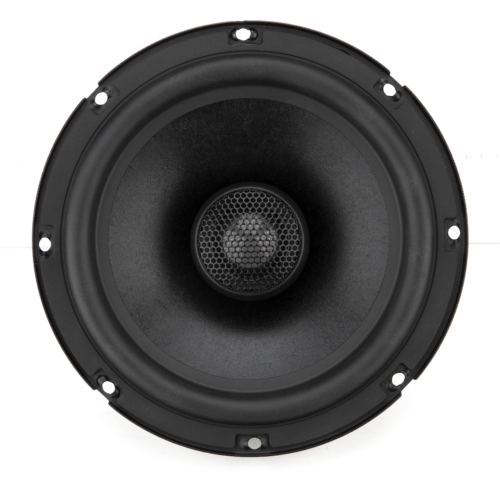

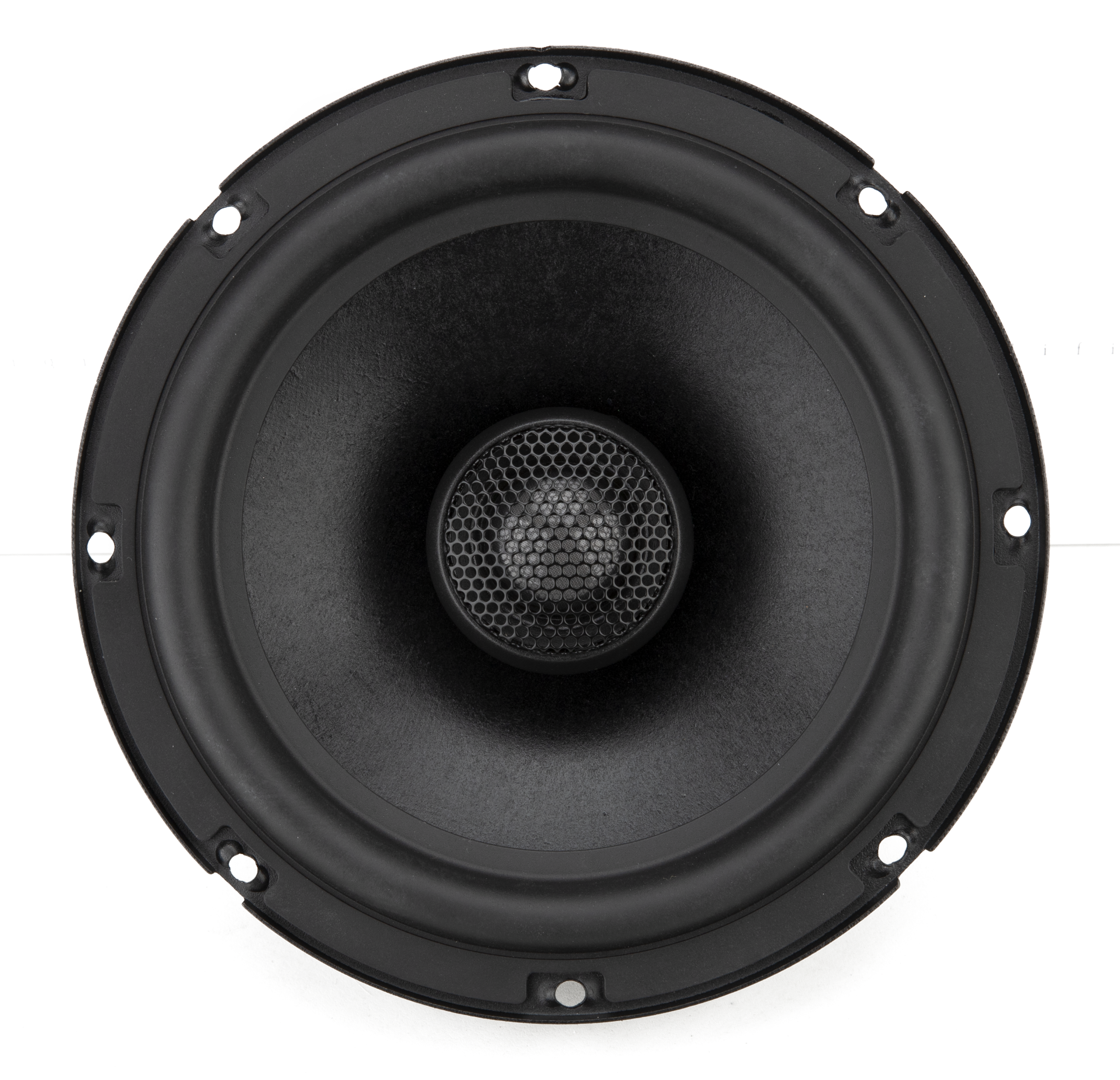

Rebec RCX6B Coaxial Speaker
Warm, Natural Sound with Enhanced Midbass Impact
The Rebec RCX6B is a 6.5-inch coaxial speaker designed to deliver warm and natural sound reproduction while providing stronger midbass performance than the RCX6A. Developed as an effective upgrade over factory speakers, the RCX6B combines balanced musicality with improved low-frequency impact for a more enjoyable in-car listening experience.
Its coaxial architecture allows easy installation while maintaining full-range sound reproduction suitable for both front and rear speaker applications.
Sound Characteristics
- Warm and natural tonal balance
- Enhanced midbass impact
- Punchy and dynamic low-frequency response
- Smooth and comfortable listening experience
- Balanced full-range sound reproduction
The RCX6B is tuned to create an engaging and natural listening experience while maintaining excellent everyday usability.
Key Features
Improved Midbass Performance
Compared with the RCX6A, the RCX6B delivers stronger and punchier midbass performance, providing greater energy and impact throughout the lower frequency range.
Composite Pulp Cone
The composite pulp cone helps maintain natural tonal balance while supporting smooth and coherent reproduction across the critical midrange frequencies.
Integrated Coaxial Design
The coaxial configuration combines midbass and high-frequency reproduction within a single driver, simplifying installation while preserving balanced sound performance.
Warm and Natural Tuning
The RCX6B is designed to reproduce music with a pleasant tonal character, allowing vocals and instruments to sound natural and easy to enjoy over extended listening sessions.
Performance Highlights
The RCX6B combines improved midbass authority with a warm and natural sound signature. Its punchier low-frequency response helps create a more lively presentation while preserving the musical balance required for everyday listening.
This tuning approach makes the RCX6B particularly effective in supporting the overall soundstage without becoming overly aggressive or fatiguing.
Ideal for Rear Fill Applications
According to Rebec’s recommended application, the RCX6B serves as an excellent complement to the rear sound field. Its warm tonal balance and enhanced midbass output help create a fuller and more immersive listening environment, making it an ideal choice for rear door installations in sound quality-oriented systems.
Summary
The Rebec RCX6B delivers warm and natural sound reproduction with stronger and punchier midbass performance than the RCX6A. Designed for easy installation and versatile system integration, it is an excellent choice for factory speaker upgrades and rear-fill applications where musicality, comfort, and balanced performance are important priorities.
Specification
| Speaker Model | RCX6B |
| Type of Speaker | Coaxial |
| Speaker Size | 165mm/6.5" |
| Nominal power (RMS) | 60W |
| Maximum power (PEAK) | 120W |
| Sensitivity (2.83V/1m) | 92dB |
| Frequency response | 58Hz-20KHz |
| Impedance | 4ohm |
| DRC | 3.6ohm |
| Voice coil diameter | 13mm/0.51in (Tweeter) 25mm/0.98in (Mid) |
| Cone (materier) | Composite pulp |
| Surround | Modified Butyl Rubber |
| Magnet (materier) | Ferrite Magnet |
| Magnet (diameter) | 80mm |
| PARAMETERS | |
| F0 | 58Hz |
| Sd | 109cm² |
| Vas | |
| Cms | |
| Mms | |
| BL | |
| Qms | |
| Qes | |
| Qts | |
| SPLo | 92dB |
| Xmax | 7mm |
| Xmech | 13mm |
