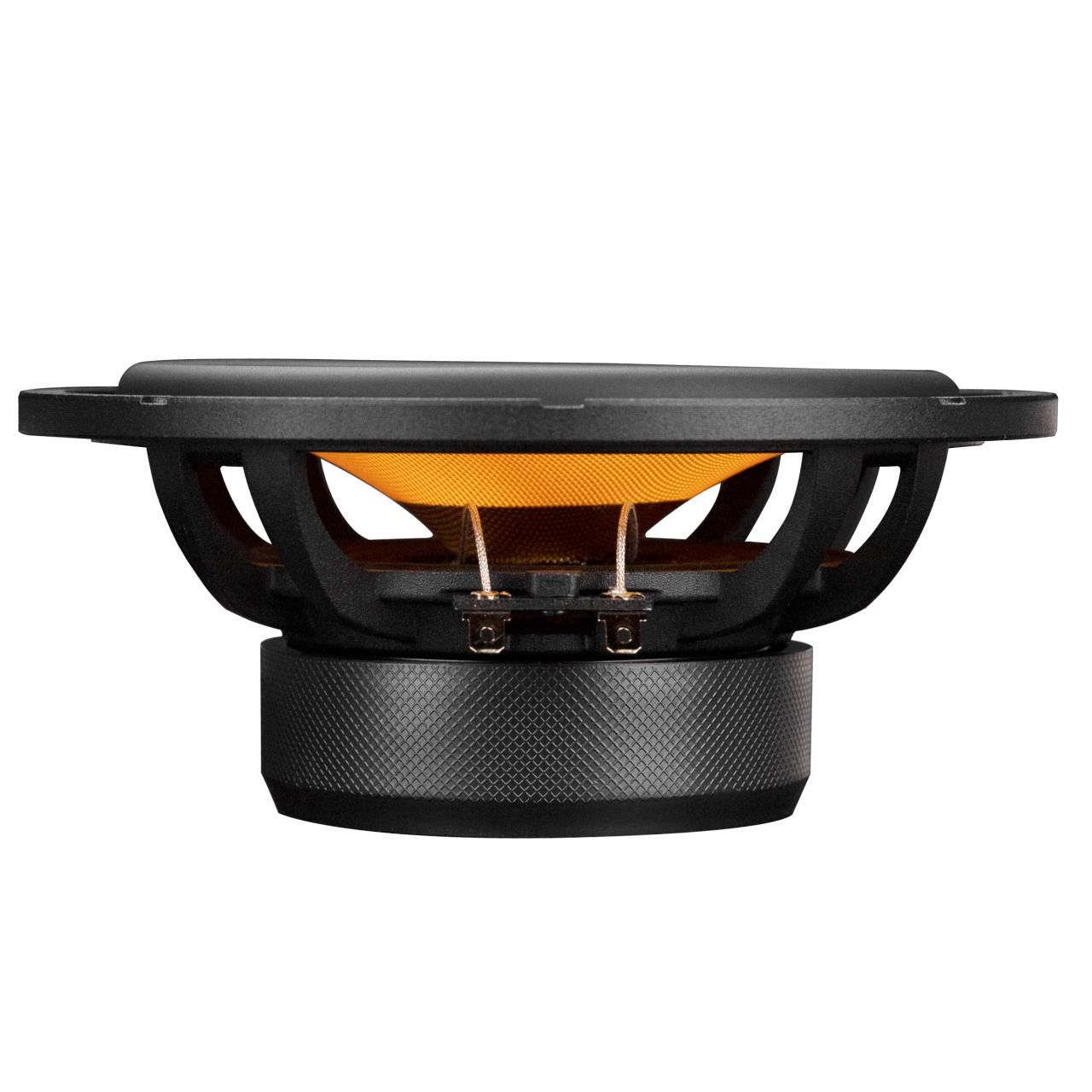

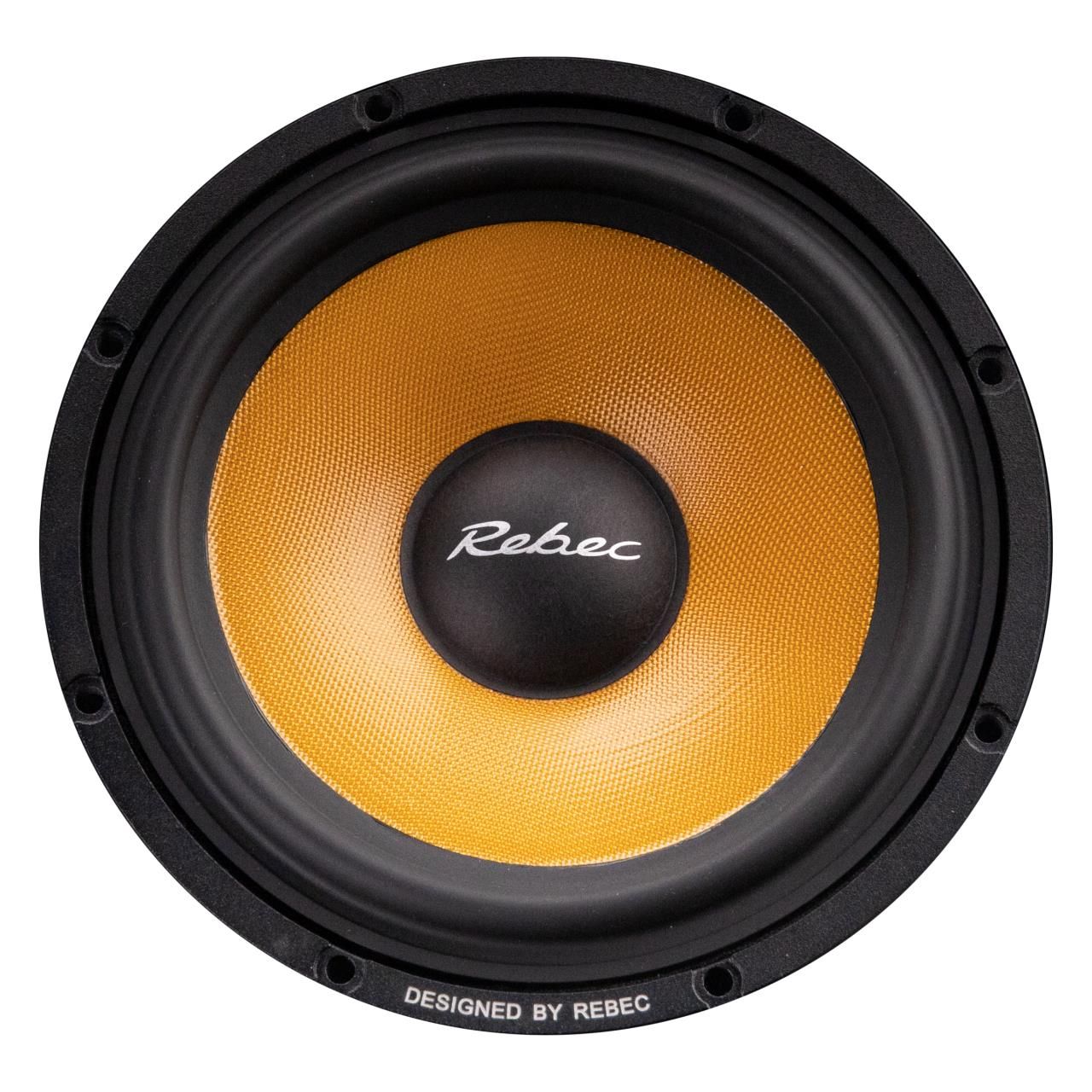

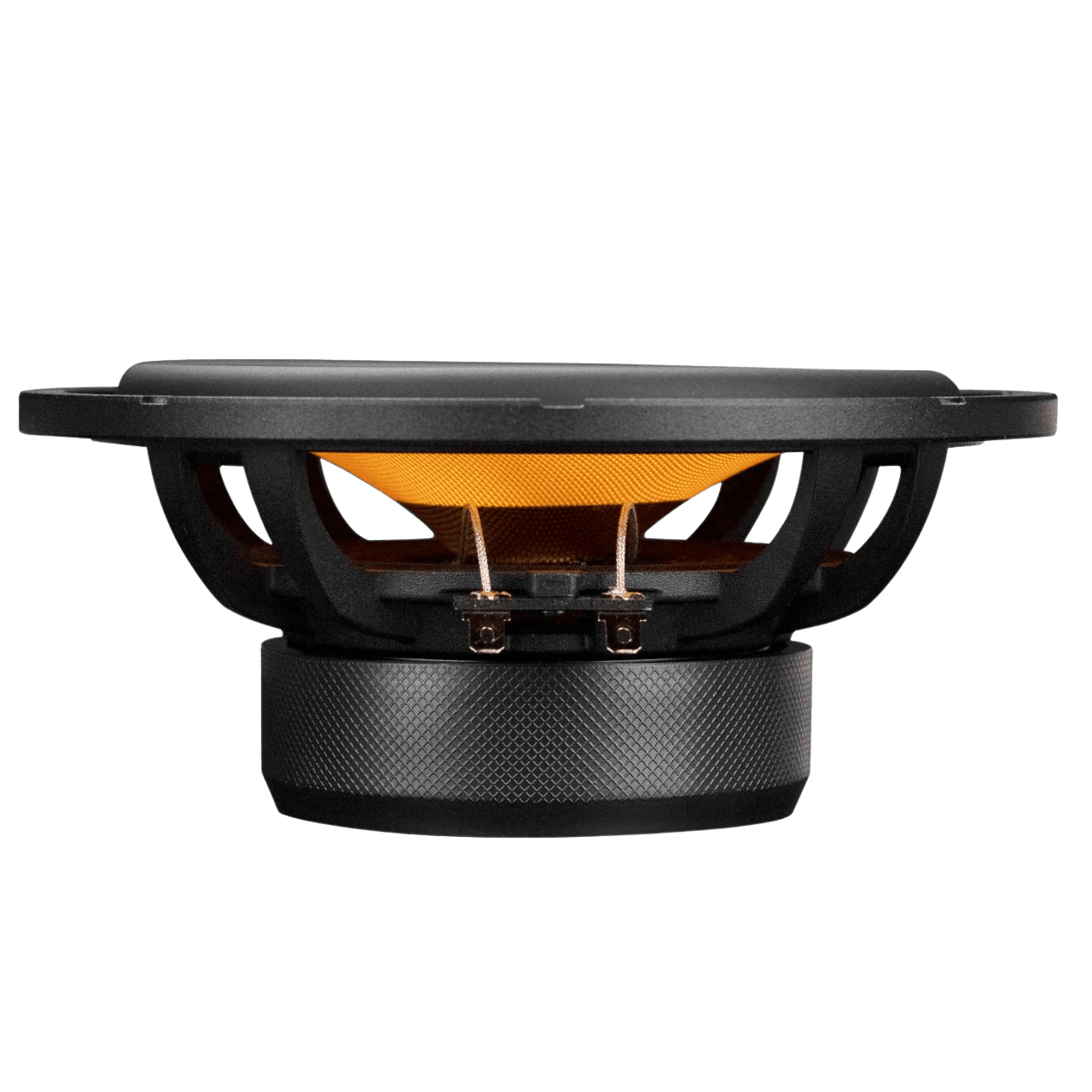

Rebec RL165 Mid-Woofer
Vivid Musical Performance with Excellent Vocal Imaging
The Rebec RL165 is a 6.5-inch mid-woofer developed for the Rebec RL Series speaker systems. Designed to deliver engaging musical performance, natural vocal support, and lively low-frequency response, the RL165 serves as the foundation of the distinctive RL Series sound character.
Featuring a glass fiber cone and optimized motor structure, the RL165 is engineered to reproduce music with balance, energy, and excellent tonal coherence across a wide range of listening styles.
Sound Characteristics
- Excellent vocal imaging
- Vivid and engaging musical presentation
- Dynamic midbass response
- Natural tonal balance
- Energetic low-frequency performance
The RL165 is designed to create a lively and enjoyable listening experience while maintaining strong vocal presence and musical clarity.
Key Features
Glass Fiber Cone Construction
The glass fiber cone provides a combination of rigidity and responsiveness, helping the RL165 reproduce bass and lower-midrange frequencies with accuracy, consistency, and musical balance.
Dynamic Midbass Performance
Engineered to deliver energetic and responsive bass reproduction, the RL165 provides a solid low-frequency foundation that enhances musical impact and overall listening enjoyment.
Excellent Vocal Support
The RL165 contributes to the strong vocal imaging that characterizes the RL Series, helping vocals sound focused and naturally positioned within the soundstage.
Balanced Musical Tuning
Developed around the RL Series philosophy, the RL165 prioritizes musical engagement, tonal balance, and everyday listening enjoyment.
Performance Highlights
The RL165 combines lively midbass performance with natural vocal support, creating a sound signature that feels expressive and enjoyable. Its balanced tuning allows music to sound dynamic and engaging while maintaining excellent overall coherence.
The combination of strong vocal imaging and energetic low-frequency response helps deliver a listening experience that remains enjoyable across a wide variety of music genres.
Application
The Rebec RL165 is ideal for component speaker systems, OEM audio upgrades, active DSP installations, and projects where musical enjoyment, vocal performance, and balanced sound quality are key priorities.
Summary
The Rebec RL165 combines a glass fiber cone, dynamic midbass performance, and balanced musical tuning to deliver excellent vocal imaging and vivid musical reproduction. Designed around the engaging character of the RL Series, it provides an enjoyable and versatile foundation for high-quality car audio systems.
Specification
| Speaker Model | RL165 |
| Type of Speaker | Mid-Woofer |
| Speaker Size | 165mm/6.5" |
| Nominal power (RMS) | 65W |
| Maximum power (PEAK) | 130W |
| Sensitivity (2.83V/1m) | 86dB |
| Frequency response | 65Hz-8KHz |
| Impedance | 4ohm |
| DRC | 3.6ohm |
| Voice coil diameter | 25mm/0.98in |
| Cone (materier) | Glass fiber |
| Surround | Isobutylene Isoprene Rubber |
| Magnet (materier) | Ferrite Magnet |
| Magnet (diameter) | 85mm |
| PARAMETERS | |
| F0 | 40Hz |
| Sd | 109cm² |
| Vas | 19L |
| Cms | 1155µM/N |
| Mms | 13g |
| BL | 4.95N/A |
| Qms | 5048 |
| Qes | 496 |
| Qts | 452 |
| SPLo | 86dB |
| Xmax | 9mm |
| Xmech | 11mm |
