Rebec RL6A
2-Way Component Speaker System
Rebec RL6A
2-Way Component Speaker System
Rebec RL6A 2-Way Component Speaker
Vivid Musical Performance with Excellent Vocal Imaging

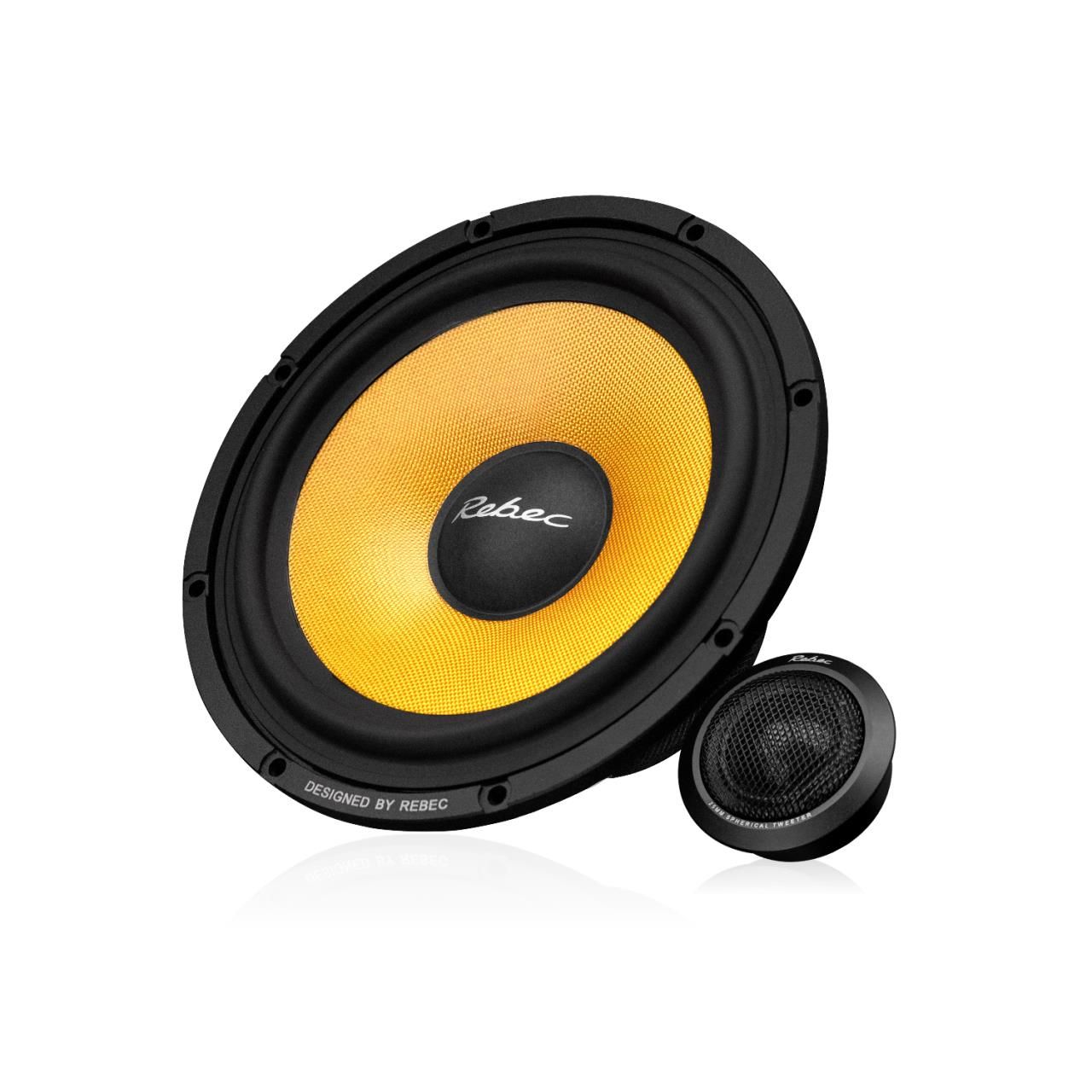

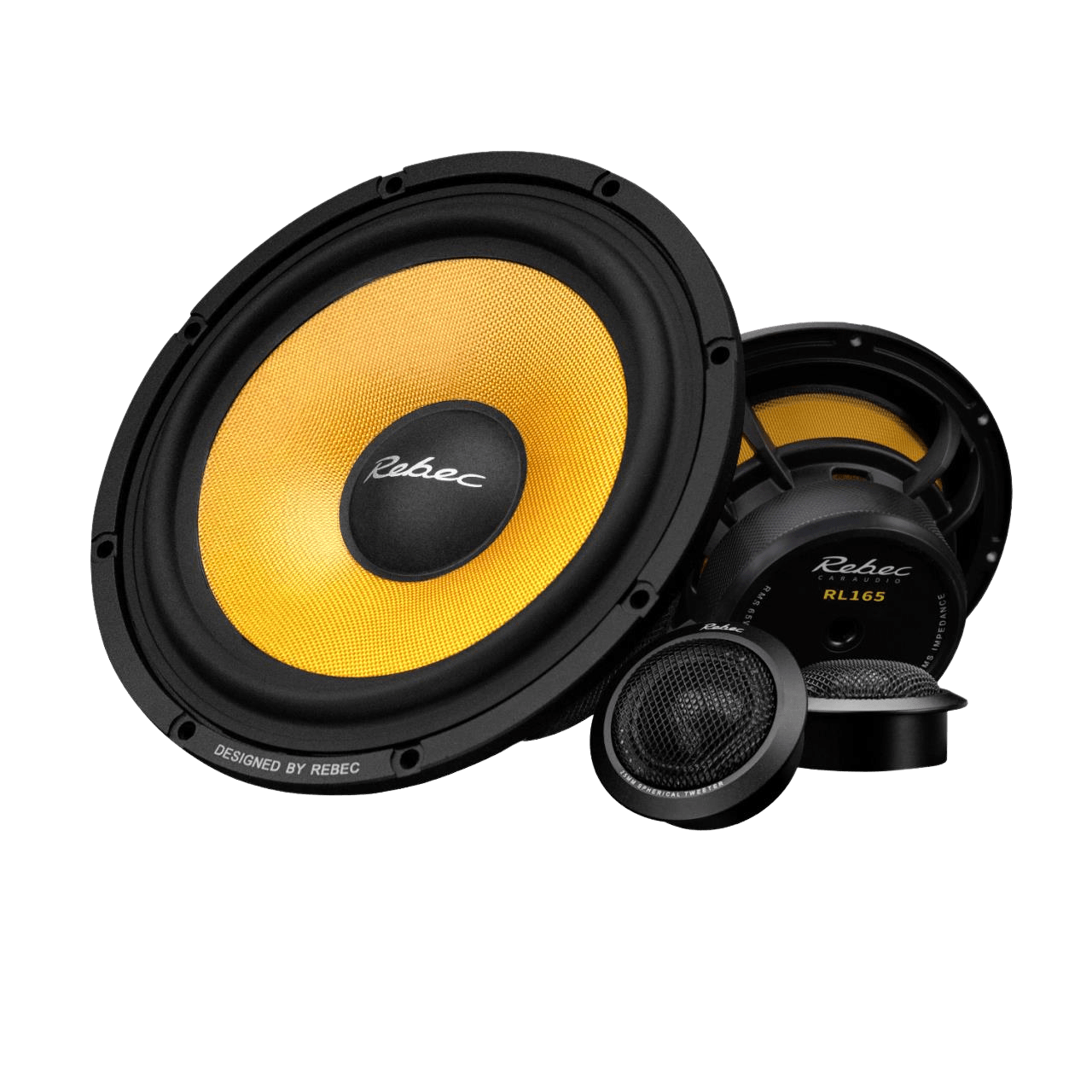

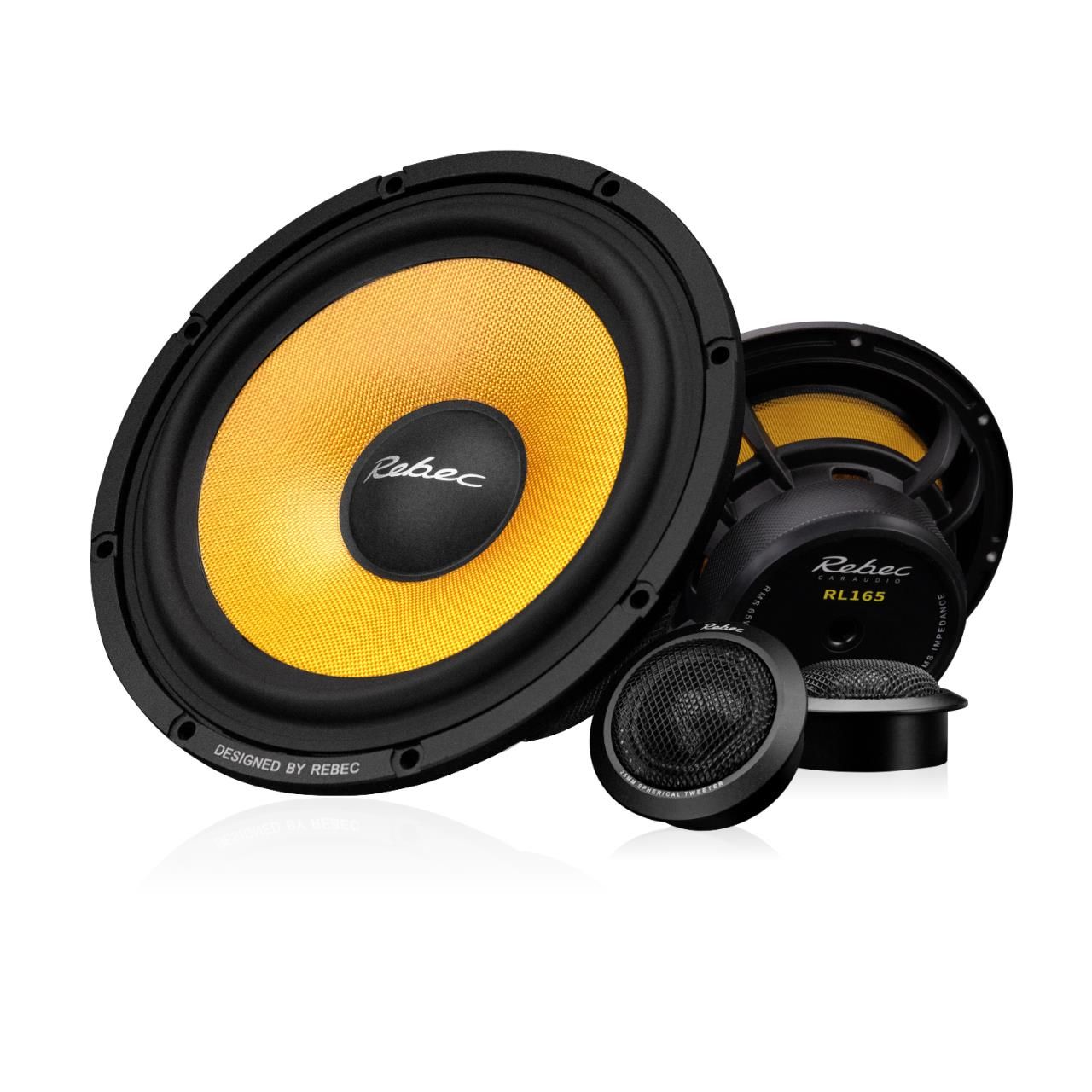

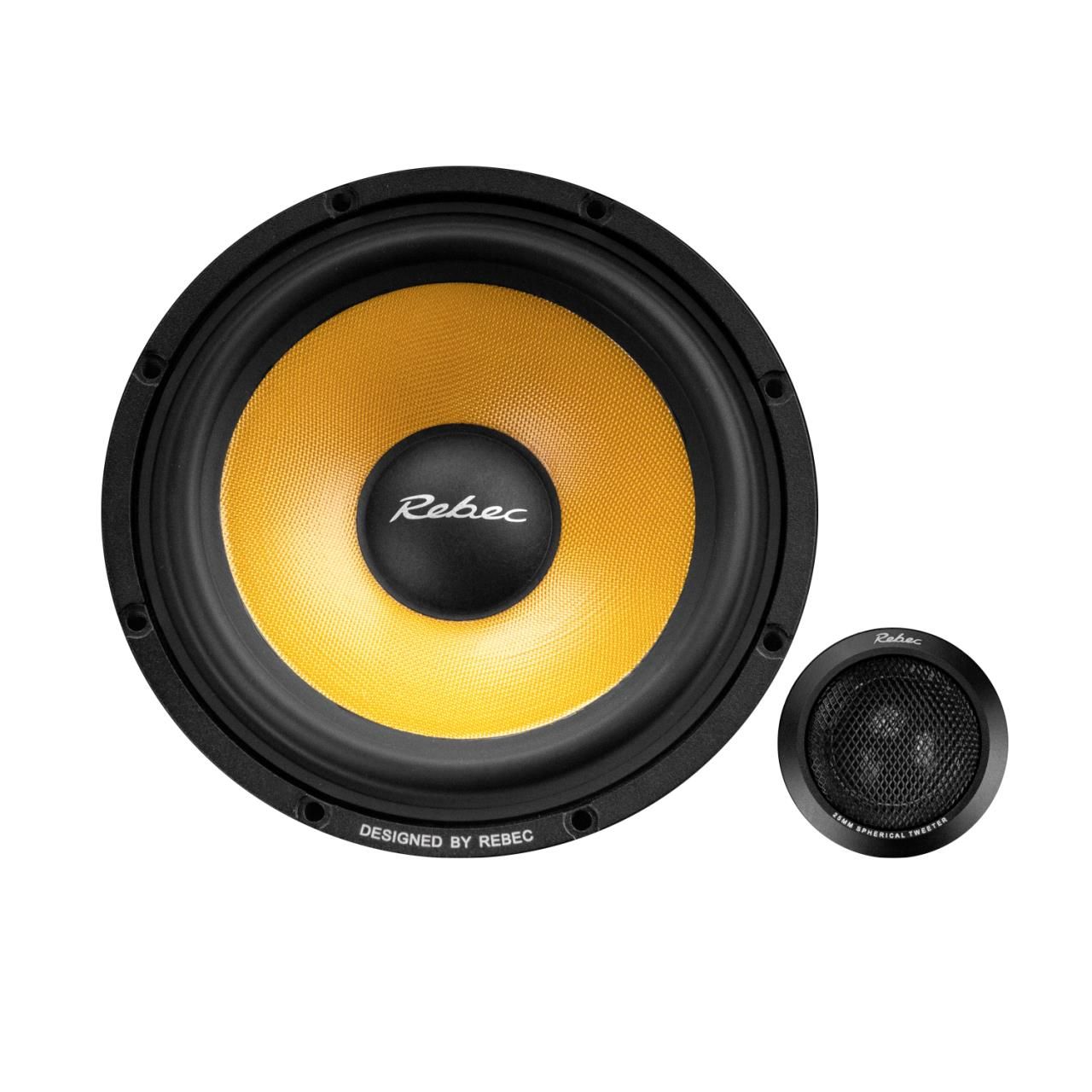

The Rebec RL6A is a 2-way component speaker system featuring the RL165 mid-woofer and RL25 tweeter. Designed to deliver engaging musical performance, natural vocal presentation, and lively low-frequency response, the RL6A offers an enjoyable listening experience that goes beyond a typical factory speaker upgrade.
Combining a glass fiber mid-woofer with a warm and musical silk dome tweeter, the RL6A is engineered to reproduce music with clarity, balance, and strong emotional appeal.
Sound Characteristics
- Excellent vocal imaging
- Vivid and engaging musical presentation
- Warm and natural tonal balance
- Dynamic low-frequency response
- Smooth and enjoyable treble reproduction
The RL6A is tuned to create an immersive listening experience where vocals remain focused and music feels energetic and expressive.
Key Features
RL165 Mid-Woofer
The RL165 utilizes a glass fiber cone structure designed to provide balanced midbass performance, natural tonal character, and strong musical dynamics. Its ability to reproduce low frequencies with depth and energy contributes to the lively character of the system.
RL25 Silk Dome Tweeter
Featuring a high-rigidity silk diaphragm, the RL25 delivers smooth and refined high-frequency reproduction. Compared with the RX25, the RL25 offers a sweeter and warmer presentation, helping create a more relaxed and musical listening experience.
2-Way Component Architecture
The dedicated mid-woofer and tweeter configuration allows each driver to focus on its optimal frequency range, improving clarity, imaging, and overall system coherence.
Balanced Musical Tuning
The RL6A is developed to provide a natural balance between vocal performance, musical detail, and listening comfort, making it suitable for a wide range of music styles.
Performance Highlights
The RL6A is characterized by its excellent vocal imaging and vivid musical presentation. Vocals are reproduced with focus and realism, while the low-frequency range delivers energy and bounce that help bring music to life.
The combination of the RL165 and RL25 creates a sound signature that feels warm, engaging, and enjoyable for everyday listening.
Application
The Rebec RL6A is ideal for OEM speaker upgrades, sound quality-oriented entry-level systems, and listeners seeking improved vocal performance, greater musical engagement, and a more refined listening experience than factory audio systems can provide.
Summary
The Rebec RL6A combines the RL165 mid-woofer and RL25 tweeter to deliver excellent vocal imaging, vivid musical performance, and dynamic low-frequency response. With its warm tonal balance and engaging sound character, it offers a rewarding upgrade for listeners who value both musical enjoyment and everyday listening comfort.
Specification
| Speaker Model | RL165 | RL25 |
| Type of Speaker | Mid-Woofer | Tweeter |
| Speaker Size | 165mm/6.5" | |
| Nominal power (RMS) | 65W | 15W |
| Maximum power (PEAK) | 130W | 30W |
| Sensitivity (2.83V/1m) | 86dB | 87dB |
| Frequency response | 65Hz-8KHz | 1.1KHz-22KHz |
| Impedance | 4ohm | 4ohm |
| DRC | 3.6ohm | 3.6ohm |
| Voice coil diameter | 25mm/0.98in | 25mm/0.98in |
| Cone (materier) | Glass fiber | High-Rigidity Silk Diaphragm |
| Surround | Isobutylene Isoprene Rubber | Neodymium Iron Boron |
| Magnet (materier) | Ferrite Magnet | 24.5mm |
| Magnet (diameter) | 85mm | |
| PARAMETERS | ||
| F0 | 40Hz | 1.4KHz |
| Sd | 109cm² | 8.6cm² |
| Vas | 19L | |
| Cms | 1155µM/N | |
| Mms | 13g | |
| BL | 4.95N/A | |
| Qms | 5048 | |
| Qes | 496 | |
| Qts | 452 | |
| SPLo | 86dB | |
| Xmax | 9mm | |
| Xmech | 11mm |
