Rebec RC200
8 inch Woofer
Rebec RC200
8 inch Woofer

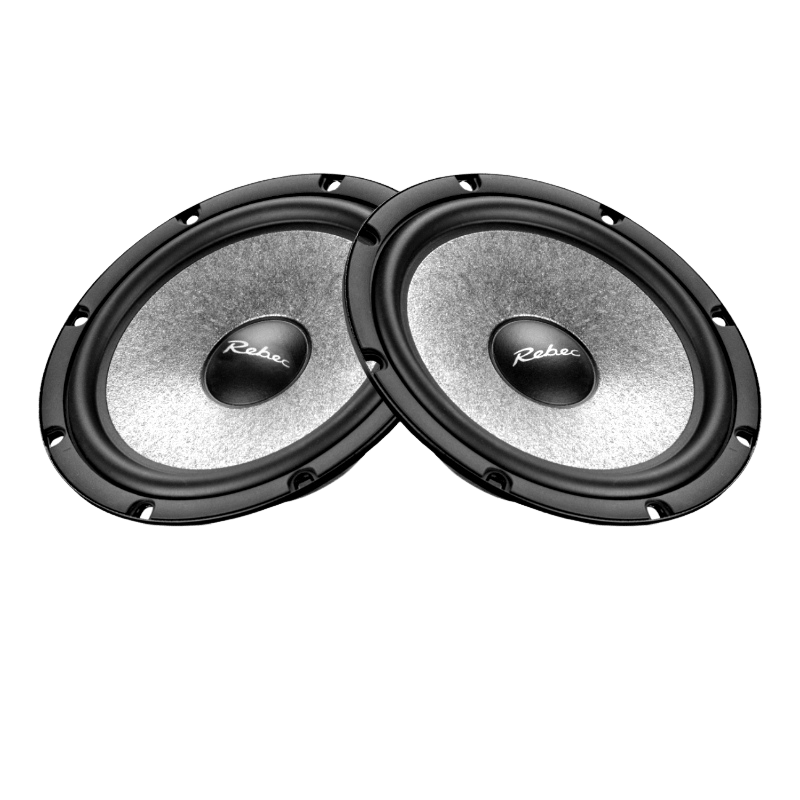

Rebec RC200 Mid-Woofer
Powerful Midbass Impact with Rich Musical Energy
The Rebec RC200 is an 8-inch mid-woofer developed for the Rebec RC Series speaker systems. Designed to deliver powerful midbass performance and strong low-frequency authority, the RC200 provides a solid foundation for dynamic and engaging music reproduction.
Combining a large cone area with the musical tuning philosophy of the RC Series, the RC200 is engineered to produce impactful bass response while maintaining natural tonal balance and excellent vocal support.
Sound Characteristics
- Powerful and impactful midbass performance
- Deep and energetic low-frequency response
- Rich and engaging musical presentation
- Strong dynamic capability
- Natural integration with vocal frequencies
The RC200 is designed to bring greater scale and energy to music, creating a more immersive and exciting listening experience.
Key Features
8-Inch Mid-Woofer Design
The larger 8-inch cone area allows the RC200 to move more air than conventional 6.5-inch drivers, delivering stronger midbass output, deeper bass extension, and greater overall authority.
Powerful Midbass Performance
Engineered to produce impactful bass notes with excellent weight and presence, the RC200 adds energy and excitement to a wide variety of music genres.
Musical and Balanced Tuning
Despite its strong low-frequency capability, the RC200 remains focused on musical balance, allowing vocals and instruments to remain natural and well-integrated within the soundstage.
Optimized for High-Performance Systems
The RC200 is designed for advanced component speaker systems and sound quality-oriented installations where stronger bass performance is desired without sacrificing musicality.
Performance Highlights
As the flagship mid-woofer within the RC Series, the RC200 delivers exceptional midbass authority and dynamic impact. Its ability to reproduce low-frequency information with power and control helps create a larger, more engaging sound presentation while preserving the musical character of the recording.
Application
The Rebec RC200 is ideal for 3-way component systems, high-performance front-stage installations, DSP-based systems, and enthusiasts seeking stronger midbass performance without relying solely on a subwoofer for low-frequency impact.
Summary
The Rebec RC200 combines powerful midbass impact, deep low-frequency performance, and musical tonal balance in a dedicated 8-inch platform. Designed to deliver greater scale, energy, and engagement, it serves as a strong foundation for high-quality Rebec sound systems focused on both musicality and performance.
Specification
| Speaker Model | RC200 |
| Type of Speaker | Mid-Woofer |
| Speaker Size | 209mm/8" |
| Nominal power (RMS) | 75W |
| Maximum power (PEAK) | 150W |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response | 45Hz-3KHz |
| Impedance | 3ohm |
| DRC | 2.7ohm |
| Voice coil diameter | 30mm/1.18in |
| Cone (materier) | Mica |
| Surround | Isobutylene Isoprene Rubber |
| Magnet (materier) | Ferrite Magnet |
| Magnet (diameter) | 100mm |
| PARAMETERS | |
| F0 | 49Hz |
| Sd | 188cm² |
| Vas | 31L |
| Cms | 604μM/N |
| Mms | 17.3g |
| BL | 5.083N/A |
| Qms | 5,93 |
| Qes | 0,745 |
| Qts | 0,662 |
| SPLo | 89dB |
| Xmax | 10mm |
| Xmech | 11mm |
