Rebec RC25
Tweeter
Rebec RC25
Tweeter

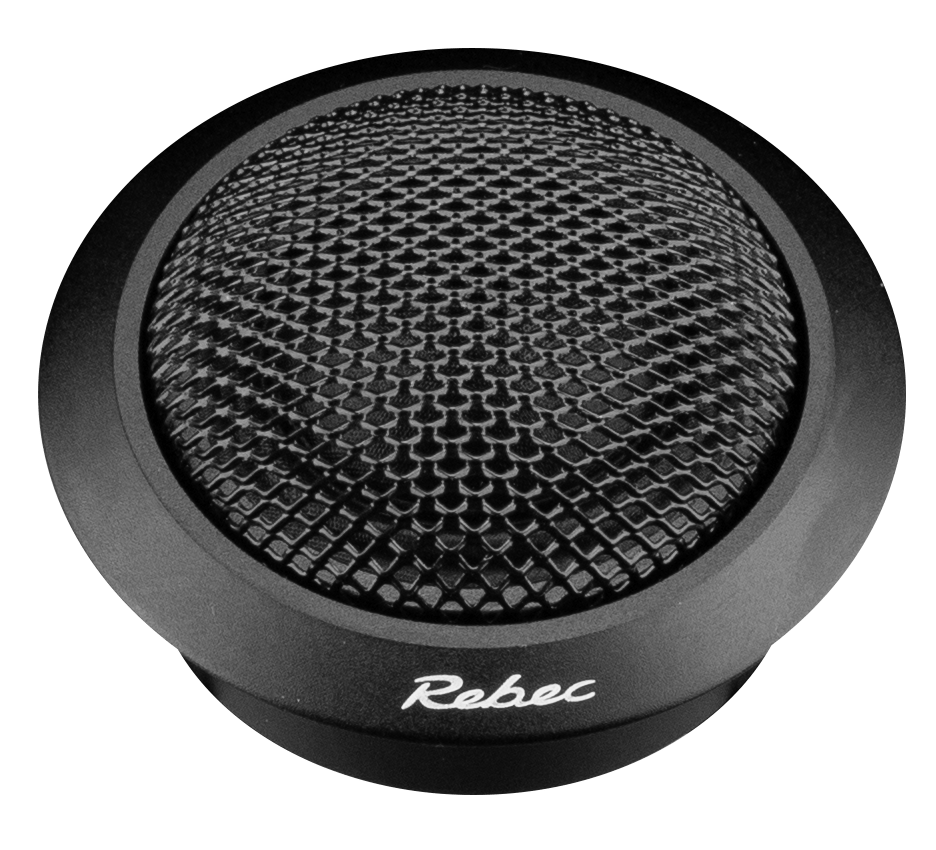

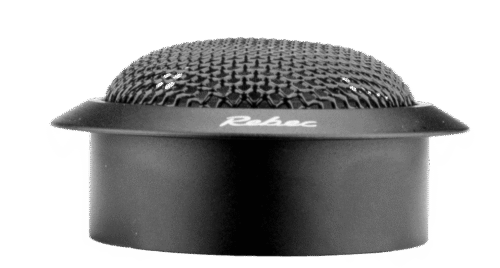

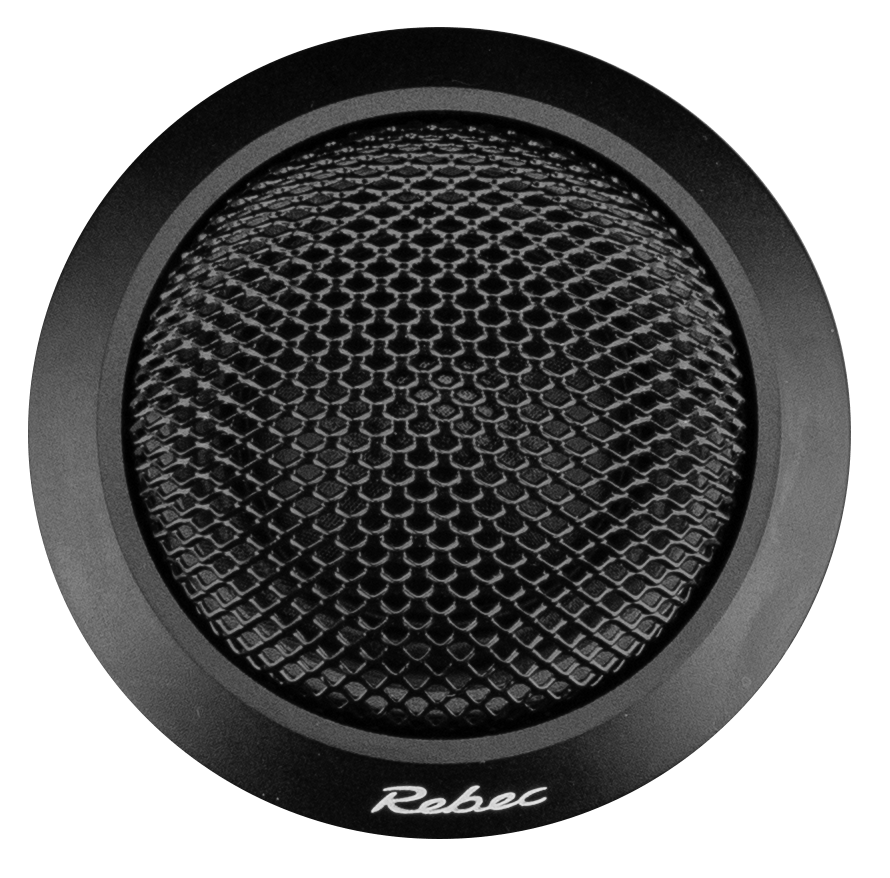

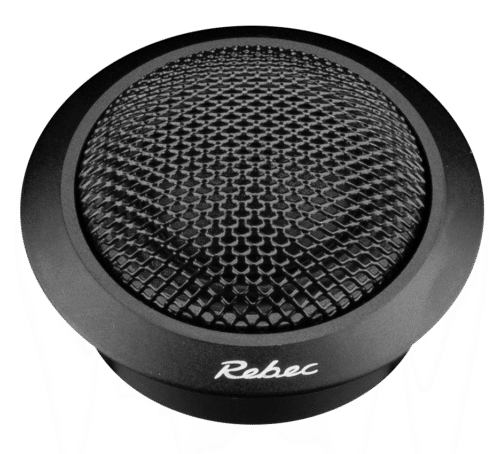

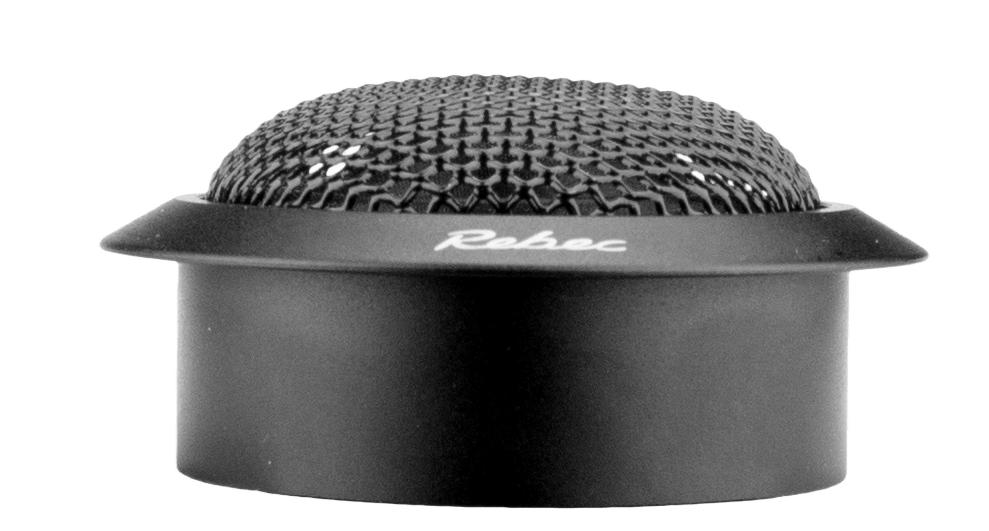

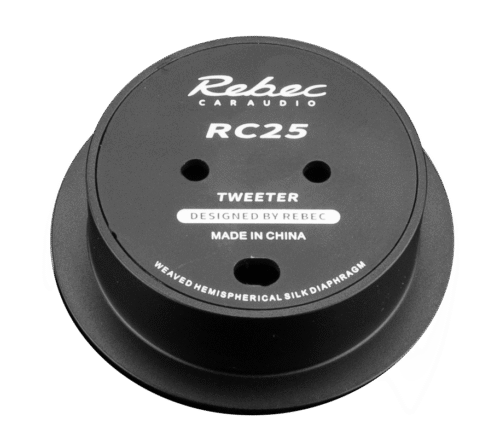

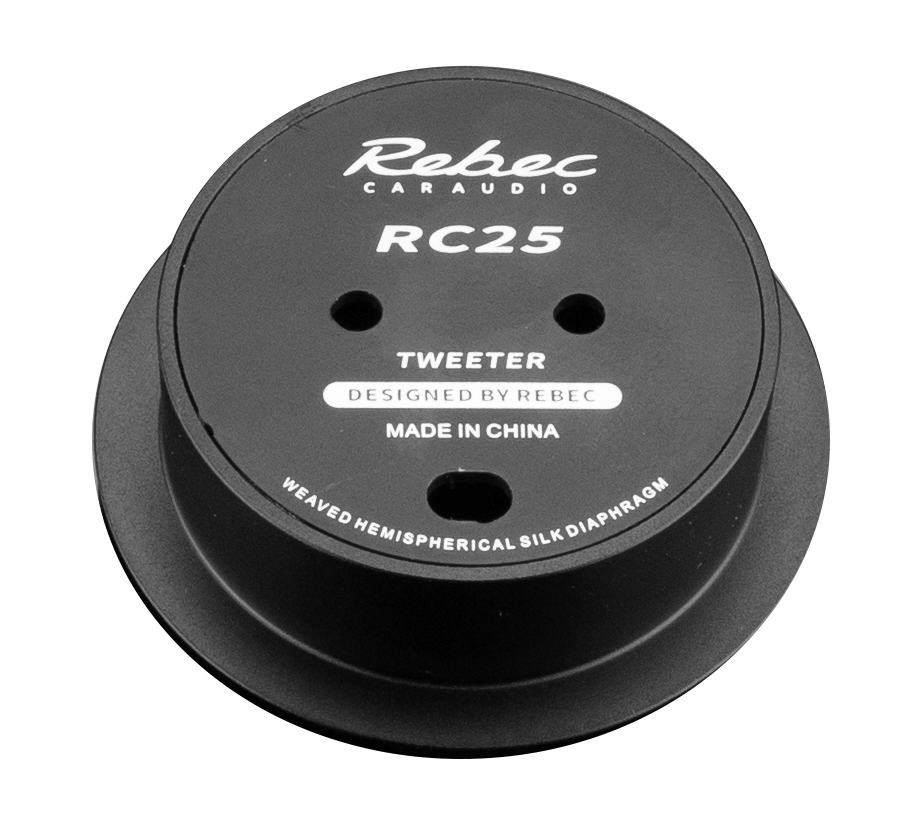

Rebec RC25 Tweeter
Smooth and Musical High-Frequency Reproduction
The Rebec RC25 is a dedicated tweeter developed for the Rebec RC Series speaker systems. Designed to complement the warm, musical, and vocal-focused character of the RC Series, the RC25 delivers smooth high-frequency performance with excellent tonal balance and listening comfort.
Featuring a silk diaphragm and neodymium motor structure, the RC25 is engineered to reproduce treble frequencies with natural detail and musical coherence, helping create a balanced and enjoyable listening experience.
Sound Characteristics
- Smooth and natural treble response
- Excellent vocal support and imaging
- Balanced tonal integration
- Comfortable long-term listening
- Musical and engaging presentation
The RC25 is tuned to work harmoniously with the midbass and midrange drivers of the RC Series, helping create a natural and cohesive sound signature.
Key Features
Silk Diaphragm Design
The silk diaphragm delivers refined high-frequency reproduction with a smooth tonal character, helping reduce listening fatigue while preserving musical detail.
Natural Tonal Balance
Designed to integrate seamlessly with the RC165 mid-woofer and RC90 midrange, the RC25 contributes to the rich and natural presentation that defines the RC Series.
Neodymium Motor Structure
The compact neodymium motor system provides efficient performance and flexible installation possibilities for a wide range of vehicle applications.
Musical Sound Tuning
Rather than emphasizing aggressive treble output, the RC25 focuses on delivering a balanced and musical listening experience with natural vocal presentation and smooth upper-frequency extension.
Performance Highlights
The RC25 helps create the engaging and emotionally expressive sound character of the RC Series. Its smooth treble response supports excellent vocal imaging while maintaining the warmth and musicality that many listeners prefer for everyday listening.
Application
The Rebec RC25 is ideal for component speaker systems, OEM audio upgrades, active DSP installations, and projects where natural tonal balance, vocal performance, and listening comfort are important priorities.
Summary
The Rebec RC25 combines a silk diaphragm, neodymium motor structure, and musical acoustic tuning to deliver smooth and natural high-frequency reproduction. Designed to support excellent vocal imaging and balanced musical performance, it is an essential part of the distinctive sound character found throughout the Rebec RC Series.
Specification
| Speaker Model | RC25 |
| Type of Speaker | Tweeter |
| Speaker Size | 55.5mm/2.18" |
| Nominal power (RMS) | 15W |
| Maximum power (PEAK) | 30W |
| Sensitivity (2.83V/1m) | 87dB |
| Frequency response | 1.1KHz-22KHz |
| Impedance | 4ohm |
| DRC | 3.6ohm |
| Voice coil diameter | 25mm/0.98in |
| Cone (materier) | High-Rigidity Silk Diaphragm |
| Surround | |
| Magnet (materier) | Neodymium Iron Boron |
| Magnet (diameter) | 24.5mm |
| PARAMETERS | |
| F0 | 1.4KHz |
| Sd | 8.6cm² |
