Rebec RC8.3
3-Way Component System
Rebec RC8.3
3-Way Component System

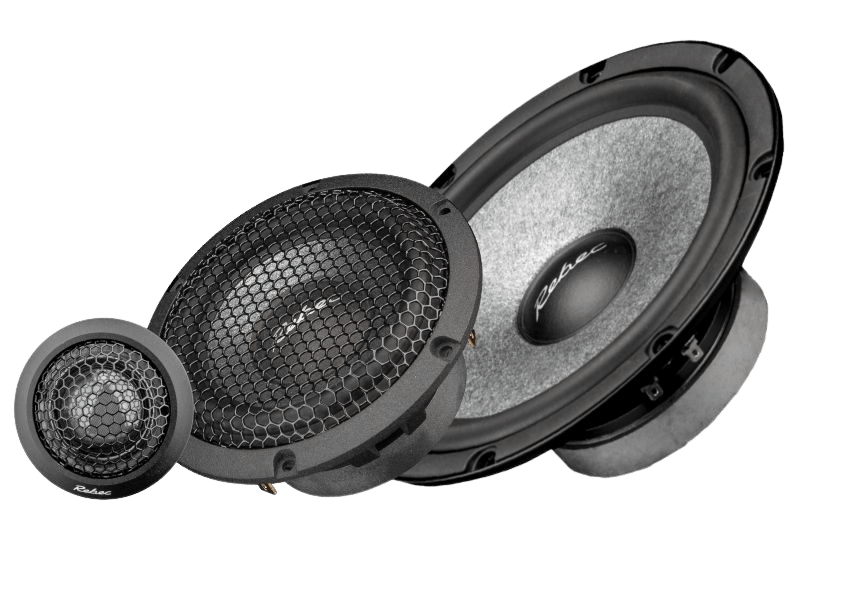

Rebec RC8.3 3-Way Component Speaker
Powerful Midbass Impact with Excellent Vocal Imaging
The Rebec RC8.3 is a 3-way component speaker system featuring the RC200 8-inch mid-woofer, RC90 midrange, and RC28 tweeter. Developed for listeners who enjoy rich musical expression, powerful midbass performance, and natural vocal reproduction, the RC8.3 delivers a larger and more dynamic sound experience while maintaining the musical character of the Rebec RC Series.
Combining strong low-frequency authority with excellent vocal focus, the RC8.3 is designed to create an engaging and energetic listening experience across a wide variety of music genres.
Sound Characteristics
- Excellent vocal imaging and focus
- Powerful and impactful midbass performance
- Deep and energetic low-frequency reproduction
- Rich and expressive midrange presentation
- Vivid and engaging musical dynamics
The dedicated three-way architecture allows each driver to perform within its optimal frequency range, resulting in improved clarity, separation, and overall musical balance.
Key Features
RC200 8-Inch Mid-Woofer
At the heart of the system is the RC200, an 8-inch mid-woofer designed to deliver powerful midbass impact and strong low-frequency authority. Its larger cone area allows the system to reproduce bass notes with greater scale, weight, and energy compared to conventional 6.5-inch component systems.
RC90 Midrange
The RC90 is engineered to reproduce vocals with natural body and emotional expression. Its warm and full presentation helps create realistic vocal imaging and a more engaging listening experience.
RC28 Tweeter
Equipped with a high-rigidity silk diaphragm and neodymium motor structure, the RC28 delivers smooth and detailed high frequencies while maintaining the natural tonal balance of the system.
True 3-Way Component Design
The combination of dedicated woofer, midrange, and tweeter drivers allows the RC8.3 to achieve superior frequency distribution, helping create a larger soundstage and more realistic musical presentation.
Performance Highlights
The RC8.3 combines the vocal strengths of the RC Series with the authority of an 8-inch mid-woofer. The result is a speaker system capable of delivering impactful midbass, excellent vocal focus, and lively musical dynamics without sacrificing tonal balance.
Application
The Rebec RC8.3 is ideal for sound quality-oriented systems, DSP-based installations, and enthusiasts seeking stronger midbass performance while maintaining excellent vocal reproduction and musical enjoyment.
Summary
Combining the RC200 8-inch mid-woofer, RC90 midrange, and RC28 tweeter, the Rebec RC8.3 delivers excellent vocal imaging, vivid musical performance, and powerful low-frequency impact. With its larger acoustic scale and engaging sound character, it is an outstanding choice for listeners who want both musicality and midbass authority in a high-quality three-way component system.
Specification
| Speaker Model | RC200 | RC90 | RC28 |
| Type of Speaker | Mid-Woofer | Mid-range | Tweeter |
| Speaker Size | 209mm/8" | 60mm/2.36" | |
| Nominal power (RMS) | 75W | 30W | 20W |
| Maximum power (PEAK) | 150W | 60W | 40W |
| Sensitivity (2.83V/1m) | 89dB | 87dB | 88dB |
| Frequency response | 45Hz-3KHz | 75Hz-6KHz | 1KHz-22KHz |
| Impedance | 3ohm | 4ohm | 4ohm |
| DRC | 2.7ohm | 3.6ohm | 3.6ohm |
| Voice coil diameter | 30mm/1.18in | 20mm/0.79in | 28mm/1.10in |
| Cone (materier) | Mica | mica composite paper cone material | High-Rigidity Silk Diaphragm |
| Surround | Isobutylene Isoprene Rubber | Isobutylene Isoprene Rubber | |
| Magnet (materier) | Ferrite Magnet | Ferrite Magnet | Neodymium Iron Boron |
| Magnet (diameter) | 100mm | 60mm | 27mm |
| PARAMETERS | |||
| F0 | 49Hz | 105Hz | 1.2KHz |
| Sd | 188cm² | 26cm² | 10cm² |
| Vas | 31L | 1.2L | |
| Cms | 604μM/N | 1.313mM/N | |
| Mms | 17.3g | 1.7g | |
| BL | 5.083N/A | 2.683N/A | |
| Qms | 5,93 | 3,941 | |
| Qes | 0,745 | 0,575 | |
| Qts | 0,662 | 0,502 | |
| SPLo | 89dB | 87dB | |
| Xmax | 10mm | 6mm | |
| Xmech | 11mm | 10mm |
